Nukeproof Horizon Pro Review

Beautifully machined CNC finish combined with high durability makes this pedal one tough trooper
gearlab tested logo

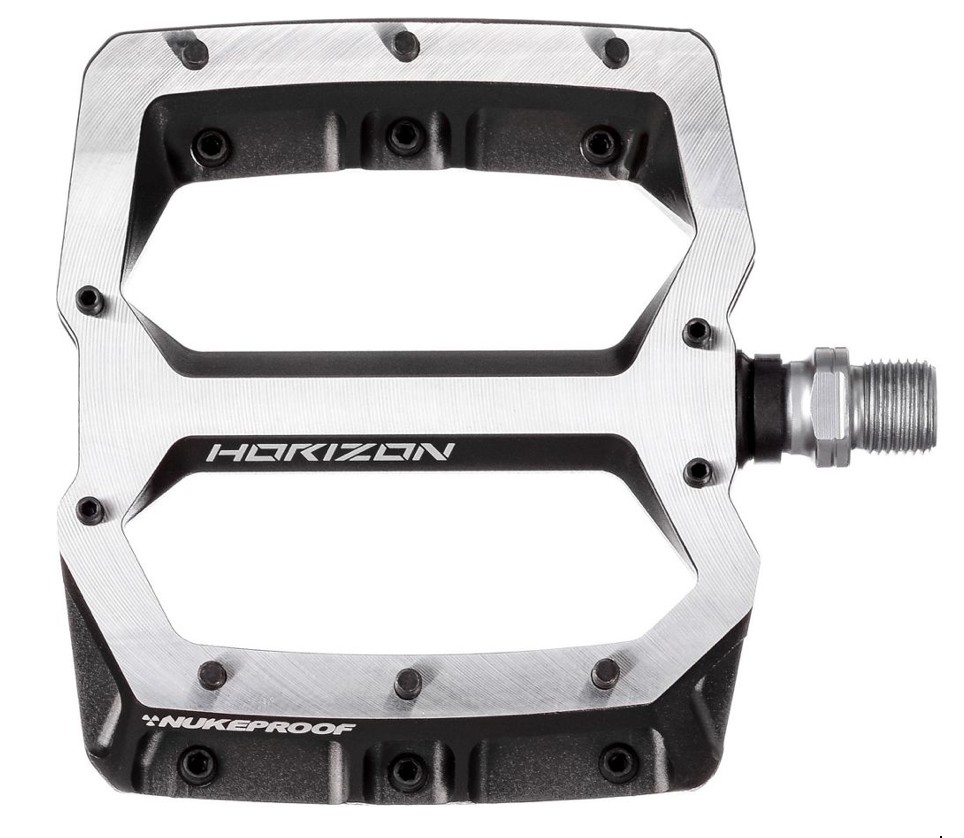

Nukeproof Horizon Pro Review (Nukeproof Horizon Pro)
Nukeproof Horizon Pro
Credit: Nukeproof
Price:  $136 List
  • 1
  • 2
  • 3
  • 4
  • 5
Manufacturer:   Nukeproof
By Al Morrison ⋅ Review Editor  ⋅  May 20, 2023
72
OVERALL
SCORE


RANKED
#10 of 24
  • Grip and Traction - 25% 8.0
  • Platform - 25% 7.0
  • Mobility - 20% 8.0
  • Servicing - 15% 7.0
  • Weight - 15% 5.0

Our Verdict

The Nukeproof Horizon Pro platform pedal delivers excellent grip whether you're cranking uphill or mobbing downhill through rough and technical terrain. Precision designed with 20 pins (10 pins per side), the grip of this pedal keeps your foot right where you place it. With pins that are 5 mm in effective length, they lock on like an alligator to the base rubber of your sole. The union between the sole of your shoe and the pedal are inseparable, especially when you dive into the chunder of a rockier section or rubble garden. With such stellar grip, these pedals are not recommended for all disciplines on the bike. Dirt jumpers may find the grip too extreme, their mobility and platform size are better suited for the downhill rider.
REASONS TO BUY
High grip
Strong build
Reasonable price
REASONS TO AVOID
Hard to relocate foot mid-decent
Heavy if you do a lot of pedaling
Not ideal for dirt jumping

Compare to Similar Products


nukeproof horizon pro
Awards  Best Buy Award
Best Pedal for your Buck
Top Pick Award
Best Composite Pedal
Best Buy Award
Best On A Tight Budget
Top Pick Award
Best For Everyday Commuting
Price $136 List$32.18 at Amazon
Compare at 4 sellers
$39.99 at Backcountry
Compare at 4 sellers
$27 List
$24.99 at Amazon
$22 List
$23.98 at Amazon
Overall Score Sort Icon
72
74
73
71
66
Star Rating
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
Bottom Line All-star pedal with a durable machined finish, offering exceptional grip and performance on your downhill rigLess-expensive flat pedal option for those who like to put their equipment to the testA quality composite pedal at an outstanding price pointA budget oriented pedal that offers adequate grip and a midsize platform but may be less apealing compared to established brandsAn inexpensive pedal that works great as a commuter, but less suitable as a true mountain bike pedal
Rating Categories Nukeproof Horizon Pro Race Face Chester OneUp Components Co... Fooker Nylon Fiber CXWXC CX-930 Pedals
Grip and Traction (25%)
8.0
7.0
6.0
7.0
6.0
Platform (25%)
7.0
7.0
7.0
6.0
7.0
Mobility (20%)
8.0
8.0
8.0
8.0
6.0
Servicing (15%)
7.0
7.0
8.0
7.0
6.0
Weight (15%)
5.0
8.0
8.0
8.0
8.0
Specs Nukeproof Horizon Pro Race Face Chester OneUp Components Co... Fooker Nylon Fiber CXWXC CX-930 Pedals
Measured Weight (per pair) 426 g 358 g 359 g 370 g 365 g
Traction Pins (per side) 10, 2 mm hex head bottom loading with 1 mm washers per pin 8, 2.5 mm hex head bottom loading 10, 2.5 mm hex head bottom loading 8, 2.5 mm hex head bottom loading 8, e4 torx top loading
Measured Platform Dimensions (millimeters) 100 mm x 105 mm 110 mm x 101 mm 114 mm x 104 mm 110 mm x 100 mm 104 mm x 102 mm
Platform Profile (millimeters) - not including pins 18 mm leading and trailing edges, 16 mm at axle 14 mm leading and trailing edges, 17 mm center of spindle 13.8 mm leading and trailing edges, 16.9 mm at axle 14 mm at edges, 18 mm at axle 15.5 mm at edge, 18mm at axle
Concavity 2 mm difference from effective edges to middle of axle 3 mm difference from effective edges to center of pedal slight convexity 4 mm difference from effective edge to center of pedal 5mm difference from effective edge to center of pedal
Q Factor / Distance from cranks to furthest pin 110 mm 103 mm 106 mm 103 mm 104 mm
Bearings 4 per pair Cartridge bearings and DU bushings DU cartridge 3 sealed cartridge bearings sealed cartridge bearing
Body Material Forged 6061-T6 Alloy body with CNC finishing Nylon Composite Nylon Composite Nylon Fiber CNC Aluminum
Pedal Wrench Type 15 mm pedal spanner, 8 mm hex 15 mm pedal spanner, 8 mm hex 15 mm pedal spanner, 6 mm hex 8 mm hex 8 mm hex

Our Analysis and Test Results

Whether you're just dusting the cobwebs off your bike after winter or you've been crushing it non-stop since last season, and you're thinking about a new set of pedals, the Nukeproof Horizon Pro is an excellent choice. These forged 6061 aluminum body pedals with a Chromoly axle offer loads of grip and are built to take whatever you dive into whether it be smashing downhill in the steeps and rock gardens, snaking through flowy singletrack, or even racing enduro. They have been meticulously designed with a large platform and angled faces because we all know rocks like to jump up at us from time to time, and are fully serviceable offering the complete package when it comes to a flat pedal.

Performance Comparison

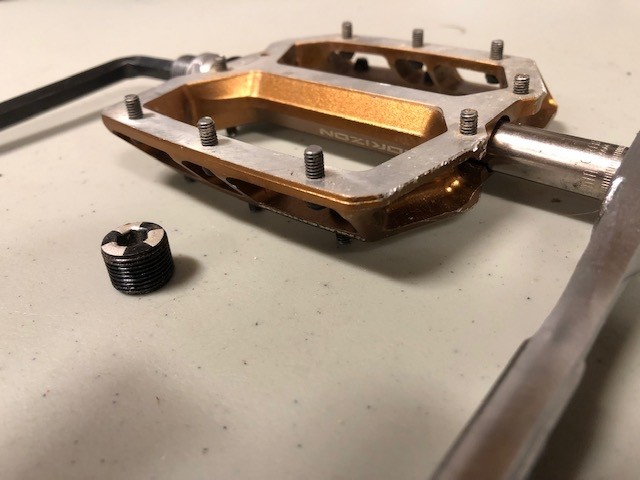

nukeproof horizon pro - this pedal was light on grease when we disassembled but with easy...
This pedal was light on grease when we disassembled but with easy serviceability we had it running smooth in no time
Credit: Al Morrison

Grip/Traction


The grip on the Horizon Pro pedals is second to none. The extra-long pins and open concave platform create an exceptional amount of traction, making them a spectacular choice if you gravitate towards extended rocky terrain. When used with shoes with an ultra-tacky sole, we found that the combination mimics the feeling of being clipped in while riding the Horizon Pro. This high amount of traction provides a secure feeling when charging through hairy sections of the trail.

On the flip side, problems can arise with removing your foot in a slower section or when an unexpected dab needs to happen. Since the grip is super tacky, it can be challenging to reposition your foot. This extreme amount of traction doesn't satisfy all disciplines on the bike and translates poorly to the dirt jump bike. At the bike park, we prefer pedals with a little less grip to allow for trickery and quick foot adjustments. The Horizon pins are adjustable, giving the ability to lengthen them to each rider's desires. Pins can also be removed to lessen the grip and traction if need be.

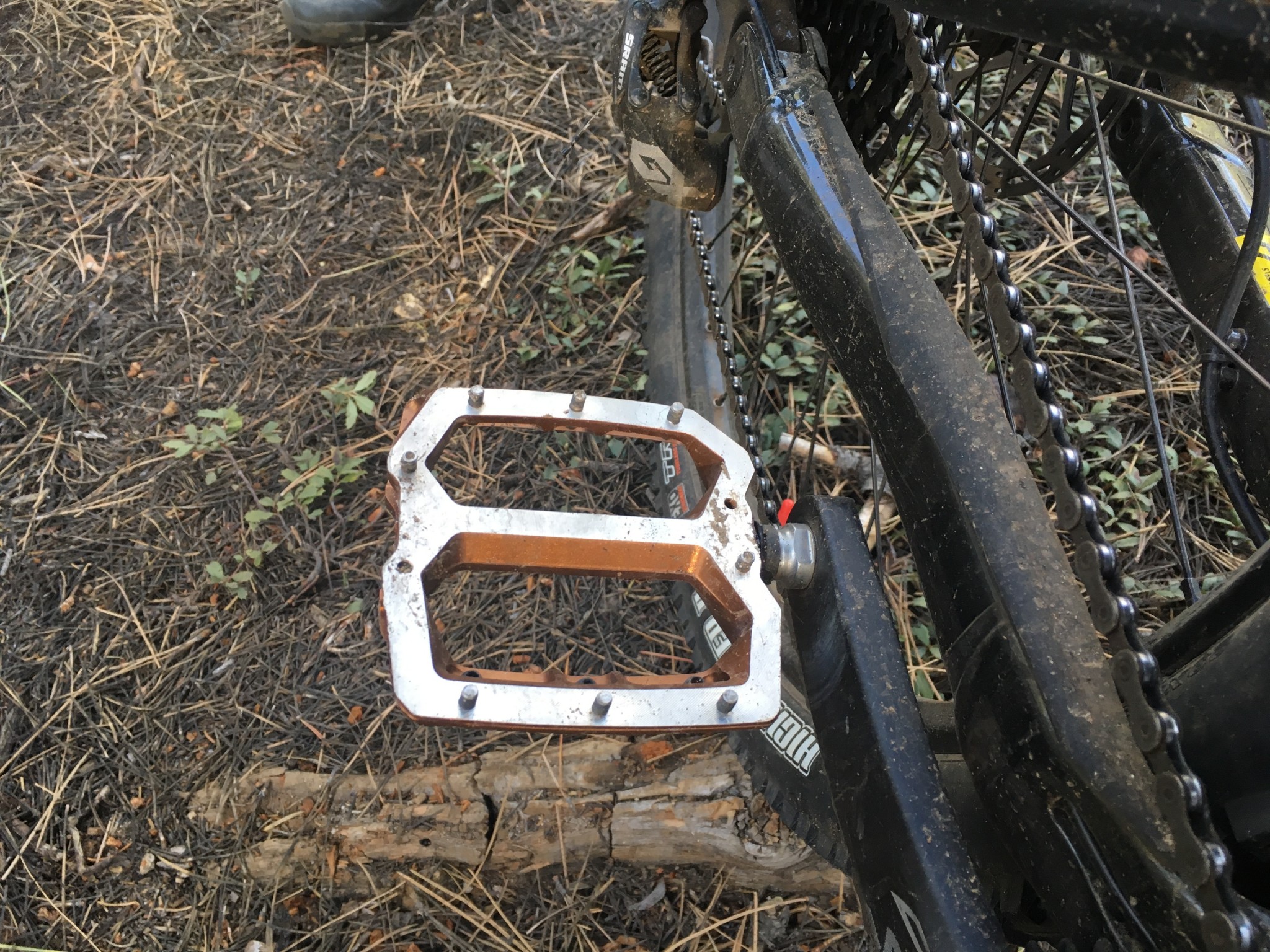

nukeproof horizon pro - solid pedal with exceptional grip and clean lines
Solid pedal with exceptional grip and clean lines
Credit: Tasha Thomas

Platform


The platform on the Horizon Pro is a forged 6061 aluminum body, with a footprint of 100mm x 105mm combined with a thickness of 15mm. This is by no means the thinnest profile on the market and would typically result in more pedal strikes, but with this platform being a bit narrower in width, they have a little extra clearance. We were shocked to have minimal pedal bite out on the trail. The Horizons also have a longer distance between the platform and the crank arm, providing a bit more overlap than most pedals. Although these pedals don't have the largest footprint, they still have the feel of a larger platform.

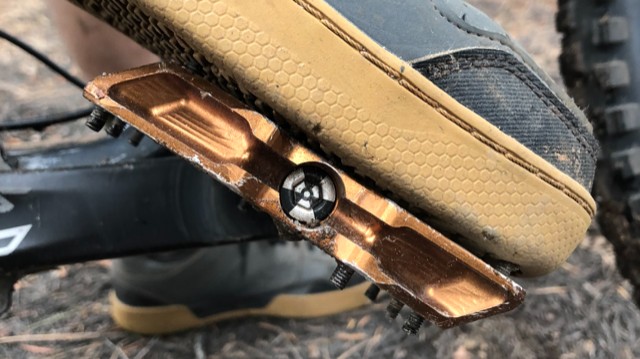

nukeproof horizon pro - the pedal platform measures 100mm x 105mm, yet feels larger underfoot.
The pedal platform measures 100mm x 105mm, yet feels larger underfoot.
Credit: Tasha Thomas

Pedal Mobility


Mobility of the pedal on the Horizon Pro is smooth and consistent. Even riding more aggressive features, these pedals feel strong, through and through. With two bushings and four sealed bearings, the rotation feels firmly controlled. This is a much-appreciated feature when dropping a foot in flat turns or when slipping off and not having the pedal spin out of control.

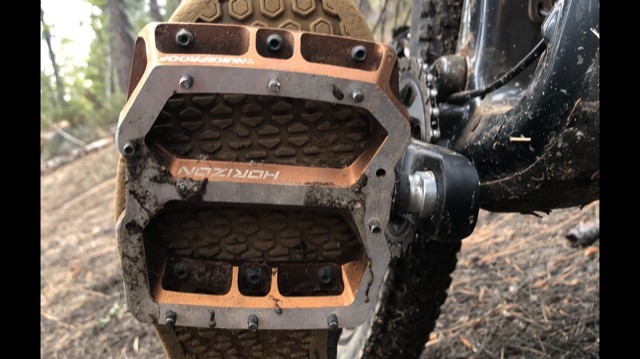

nukeproof horizon pro - the bearings are smooth and provide a controlled rotation.
The bearings are smooth and provide a controlled rotation.
Credit: Al Morrison

Servicing/Build


The Horizon Pro pedal is an 'at ease' pedal having no complications when it comes to servicing or mounting. Check out the Nukeproof website for a detailed video with Sam Hill's bike mechanic showing step-by-step how to remove and reinstall new bearings of the Horizon Pro. What better tutorial to watch than of the mechanic for the man himself tearing his signature pedal apart? A rebuild kit for this pedal is available online and includes a full set of new pins.

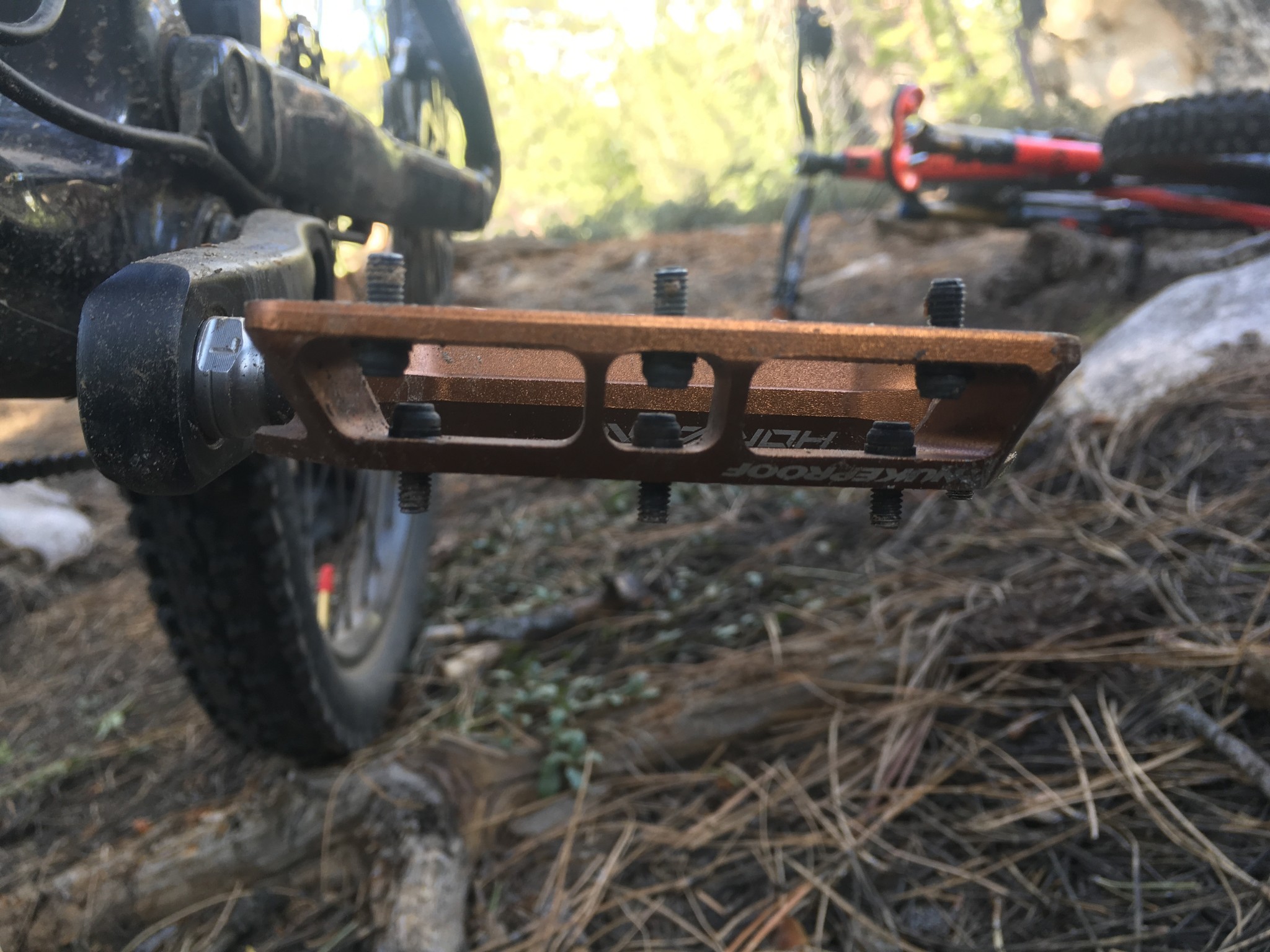

nukeproof horizon pro - long pins, like those on the nukeproof horizon, provide loads of...
Long pins, like those on the Nukeproof Horizon, provide loads of grip on your soles.
Credit: Al Morrison

The Horizon pedals contain some of the best materials available but don't break the bank. They are built with a durable Chromoly axle, riding on four sealed bearings, and two DU bushings inside a forged aluminum body topped with adjustable pins. These are designed to withstand the most aggressive gravity-bound abuse. Nukeproof also has replacement parts for every function of the pedals, making these easy to repair if necessary.

Weight


Our aluminum test pedals weighed in at 450-grams, which was on the higher end of the scale in our group of both aluminum and composite pedals. While eliminating weight can be advantageous, we never felt the weight of the Nukeproof as a detriment to their performance or feel. There is an option to purchase this pedal with a Titanium axle, which dramatically drops the weight while increasing the price significantly. Since this pedal is gravity-oriented, weight is less consequential when compared to the grip and platform.

Value


Currently, many flat pedals out on the market today offer high durability and sleek design, which are contingent on a hefty cost. Still, the Nukeproof Horizon Pro pedals happen to be fairly priced. Attention to detail was not left out in the R&D of these bad boys. The strength is in the design; it won't break the bank when servicing is needed. We feel they are a great value.

Conclusion


The Nukeproof Horizon Pro pedals may not be the most modern design or made from the fanciest materials, but they sure grip. For the price, we feel they are hands down one of the best bangs for your buck when figuring out which flat pedals to buy. These pedals provide a sleek look with multiple anodized colors and a quality machined finish. With a conservative platform design to prevent foot fatigue and long pins to assure traction through rough terrain, Nukeproof produced a true quality pedal. The grip provided may be overkill for the dirt jump crowd, but these are perfect for downhill or aggressive enduro riders.
