OneUp Components EDC V2 Review
Our Verdict
Compare to Similar Products
This Product
OneUp Components EDC V2 | |||||
---|---|---|---|---|---|
Awards | A Unique On-Bike Carry | Best Overall Bike Multi-Tool | Best Bang for Your Buck | Best Lightweight Multi-Tool | Best for Pack Ditchers |
Price | $69.99 at Evo Compare at 4 sellers | $45 List $44.99 at Amazon | Check Price at Backcountry Compare at 3 sellers | $37.00 at REI Compare at 2 sellers | $37.79 at Amazon Compare at 2 sellers |
Overall Score | |||||
Star Rating | |||||
Bottom Line | This innovative model stores on your bike so you can leave the pack at home and still be ready for anything | This one-piece tool offers exceptional leverage and a wide variety of functions | The M19 is a well designed multi-tool with everything you need to handle most trail-side mechanicals | A tiny, lightweight tool capable of tackling common trailside repairs | This contender's 15 functions and on-bike storage lets you leave your pack at home without fear of being stranded |
Rating Categories | OneUp Components ED... | Lezyne Super V 22 | Crankbrothers M19 | PNW Components Pebb... | Blackburn Switch Wrap |
Features (25%) | |||||
Ergonomics (25%) | |||||
Portability (20%) | |||||
Ease of Use (20%) | |||||
Construction Quality (10%) | |||||
Specs | OneUp Components ED... | Lezyne Super V 22 | Crankbrothers M19 | PNW Components Pebb... | Blackburn Switch Wrap |
Weight | 128 g | 141 g | 173 g | 51 g | 178 g |
Number of Functions | 20 | 22 | 19 | 6 | 15 |
Weight With Cover | N/A | 143 g | 209 g | N/A | N/A |
Hex Wrenches | 2, 2.5, 3, 4, 5, 6, 8 mm | 2, 2.5, 3, 4, 5, 6, 8 mm | 2, 2.5, 3, 4, 5, 6, 8 mm | 3, 4, 5, 6 mm | 2.5, 3, 4, 5, 6, 8 mm |
Torx Wrenches | T25 | T10, T25, T30 | T10, T25 | T25 | T25, T30 |
Screwdrivers | Flat head | Phillips | Phillips #1, #2, Flat #2 | None | Flat head |
Chain Tool? | Yes | Yes | Yes | No | Yes |
Addtional Tools | Tire lever, spoke wrench sizes 0,1,2,3, Presta valve core tool, spare rotor bolt, tubeless plug tool | 8/10 mm wrench, spoke wrenches sizes 0,1,2,3, rotor truing tool, bottle opener, disc brake wedge | 8/10 mm open wrench; spoke wrenches sizes 0,1,2,3 | Dynaplug accessory | T-wrench, L-wrench, chainbreaker, disk pad spreader, hex wrench |
Size (Length x Width x Thickness) | 7.5 x 0.875 in | 3.58 x 2.13 x 0.69 in | 3.5 x 1.875 x 0.75 in | 2.5 x 0.75 x 0.5 in | 4.7 x 3 x 3 in |
Our Analysis and Test Results
As a relative newcomer to the mountain bike industry OneUp Components has quickly made a name for itself by providing thoughtful, well-designed products. The company was founded by a small group of mountain bikers and industry veterans who wanted to design better parts for their own bikes, and they have since delivered a variety of great products from dropper posts and handlebars to chainrings and axles. The V2 update to their popular EDC tool system isn't a drastic departure from the original design. It still stores in your bike's steerer tube or EDC pump and packs the same functions as the original, but a few tweaks make this version a bit more versatile, user-friendly, and durable.
Performance Comparison
Features

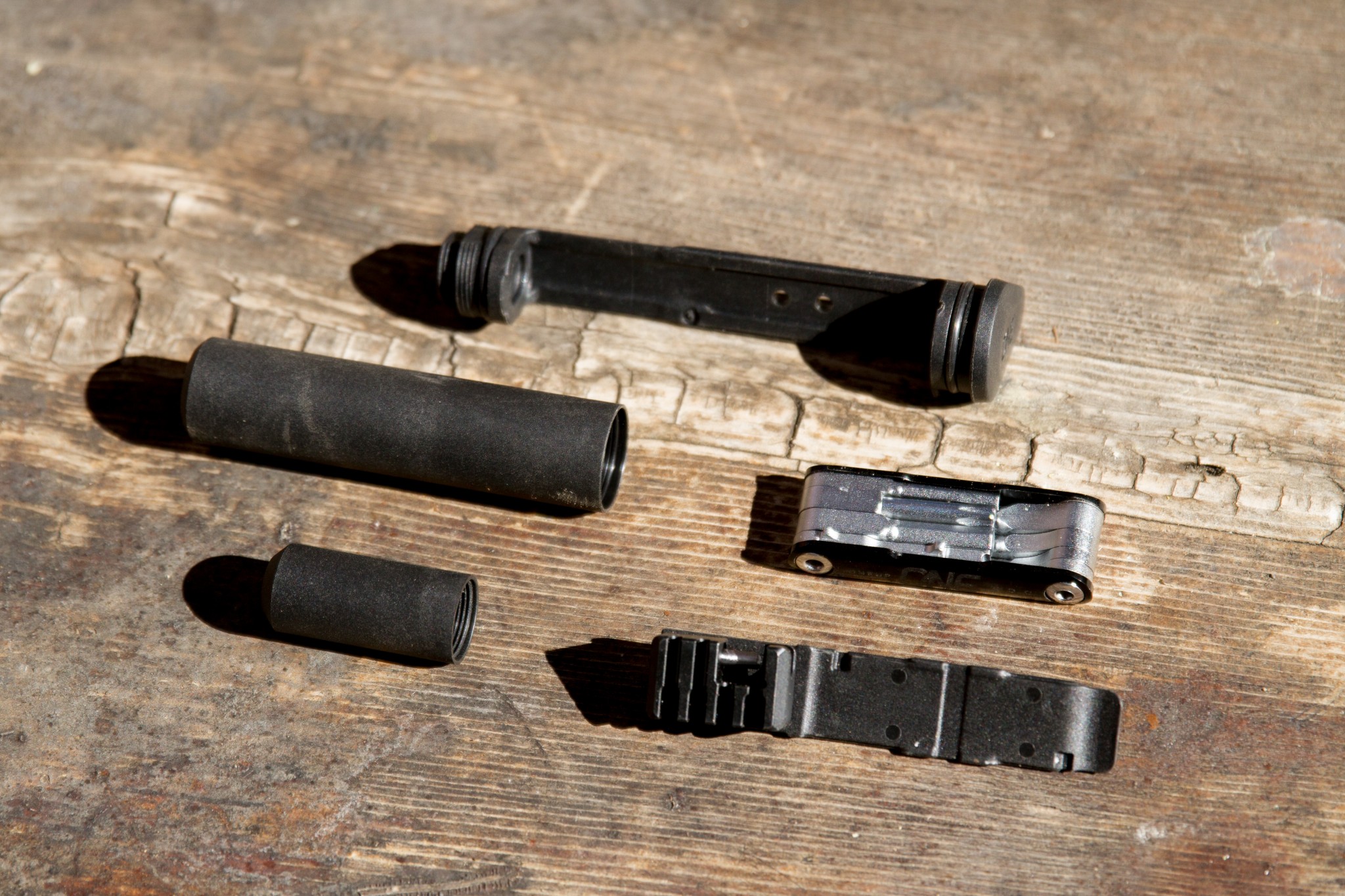

The EDC V2's main features remain largely unchanged from the original version, but an updated chain breaker and an extra sealed storage compartment are nice updates. The overall package is the same, and with twenty essential functions, this model still packs just about every tool you might reasonably need to keep your bike rolling through a mid-ride mechanical. The multi-piece system comprises a small multi-tool, a chain breaker and tire lever, and a storage unit with two separate sealed chambers. The multi-tool and tire lever clip neatly together with the storage unit threaded onto the bottom, and the whole thing slides smoothly into your steerer tube or the EDC frame-mounted 100cc pump.

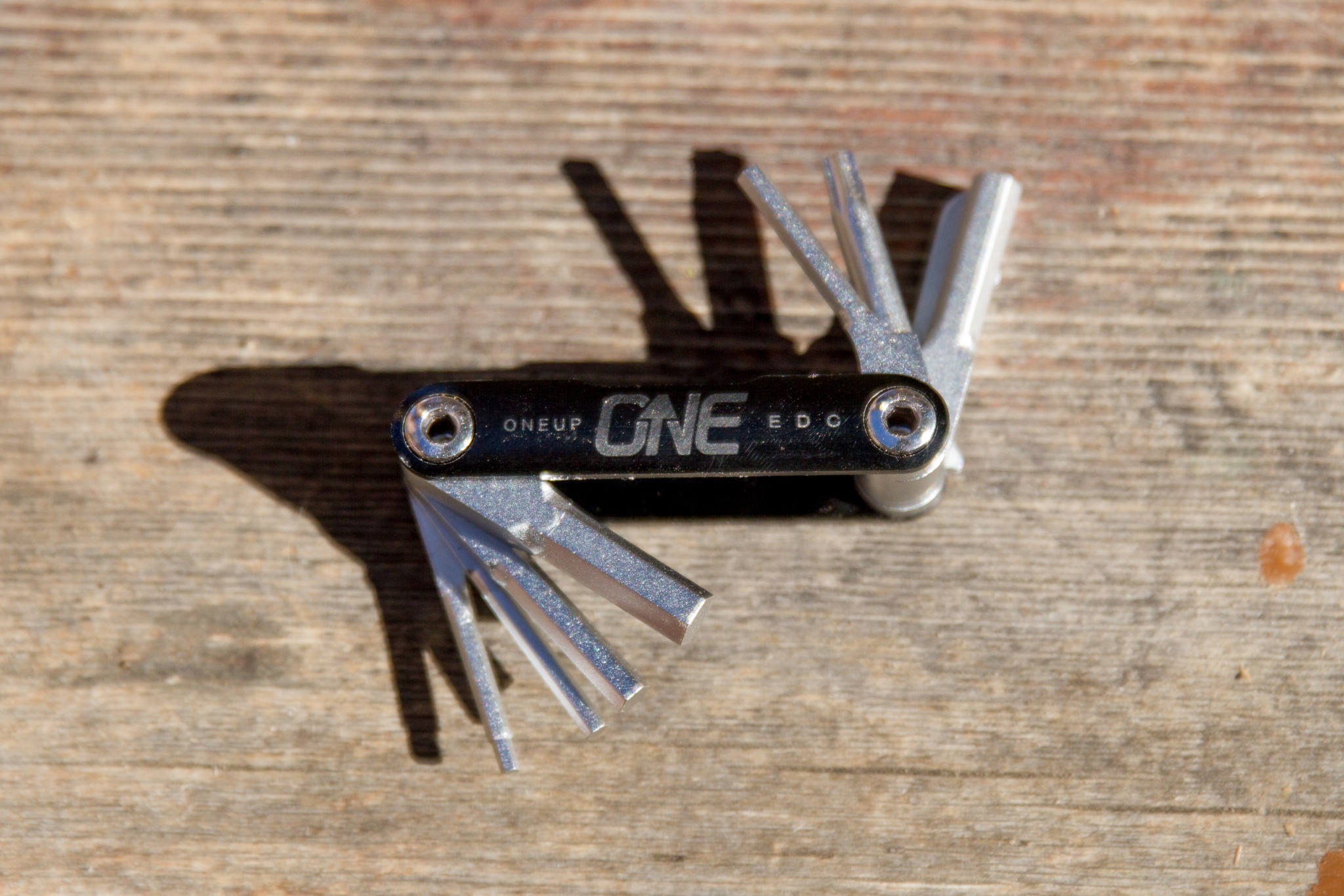

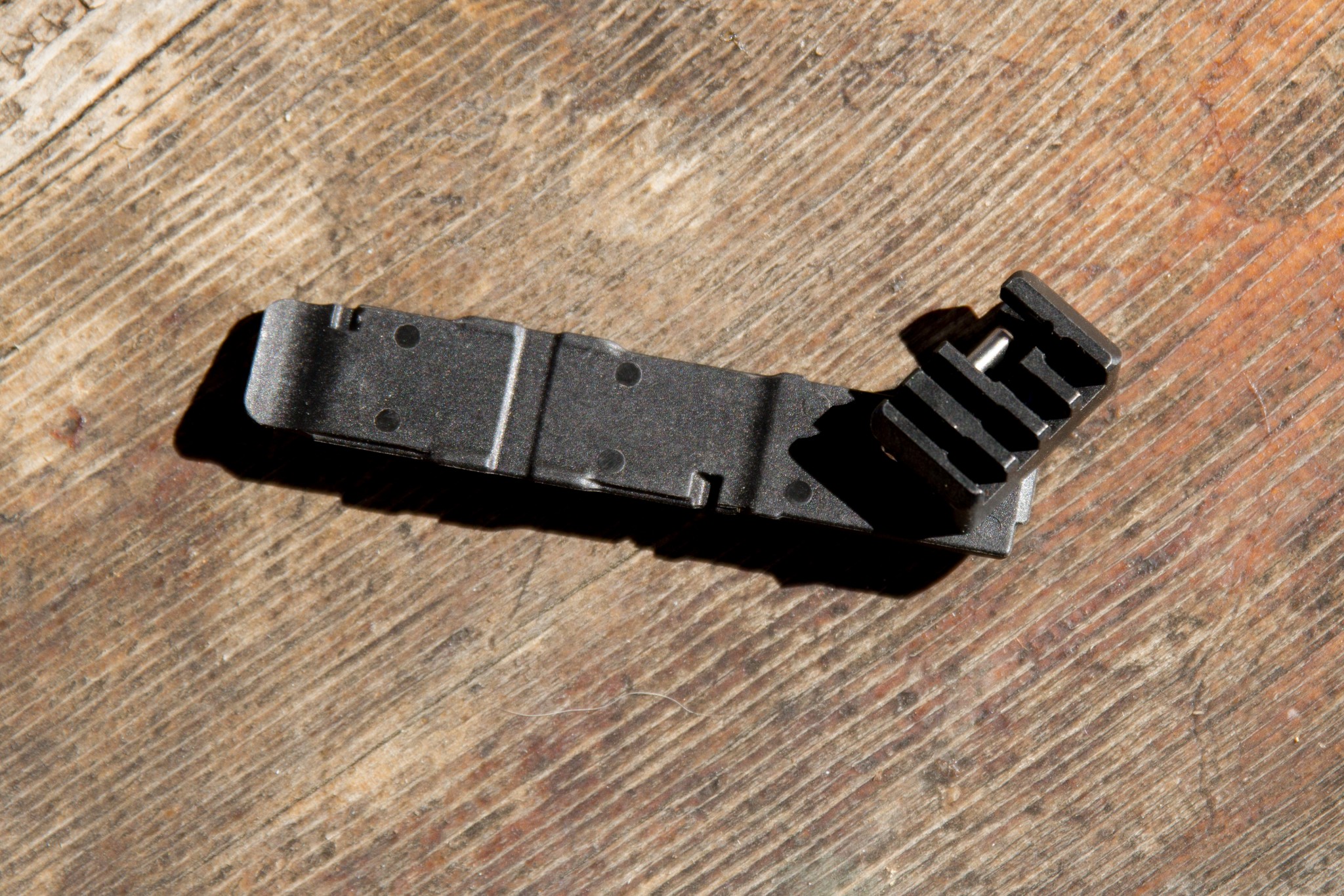

The small multi-tool was our most heavily-used piece of the system during our field test. It contains 2, 2.5, 3, 4, 5, 6, and 8mm Hex/Allen keys, a Torx 25, a flat head screwdriver, a quick link breaker, and an EDC top cap tool. Together these bits make up the most common tools necessary for a quick trailside repair. The separate chain breaker/tire lever piece is held together with a spare rotor bolt rather than the spare chainring bolt that the V1 tool used—likely because more chainrings have used a lock ring mounting system in recent years. The tire lever doubles as a handle for the chain breaker, and the chain breaker includes sizes 0, 1, 2, and 3 spoke wrenches and a presta valve core tool machined into its side.
In addition to the tools, the EDC V2's main unit also has two separate sealed compartments. The larger of two can be used to store things like tire patches, extra cash, and zip ties, while the smaller compartment is perfect for carrying a tubeless plug jabber. If you would rather carry a CO2 cartridge than the tubeless plugs you can remove the cap for the smaller storage container and thread your cartridge into the EDC's plastic body.

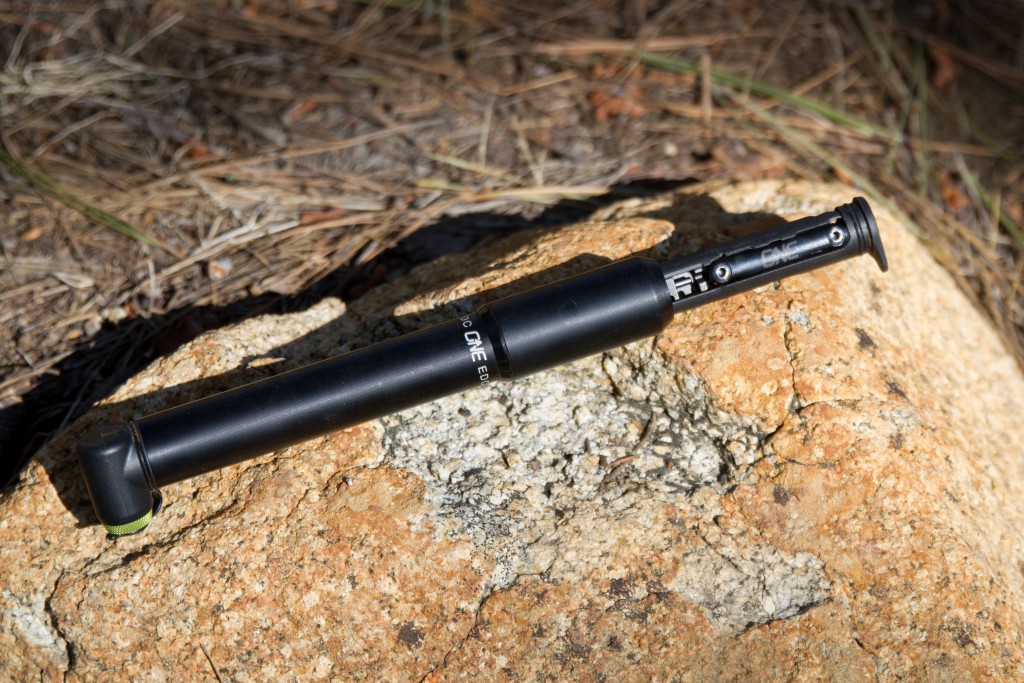

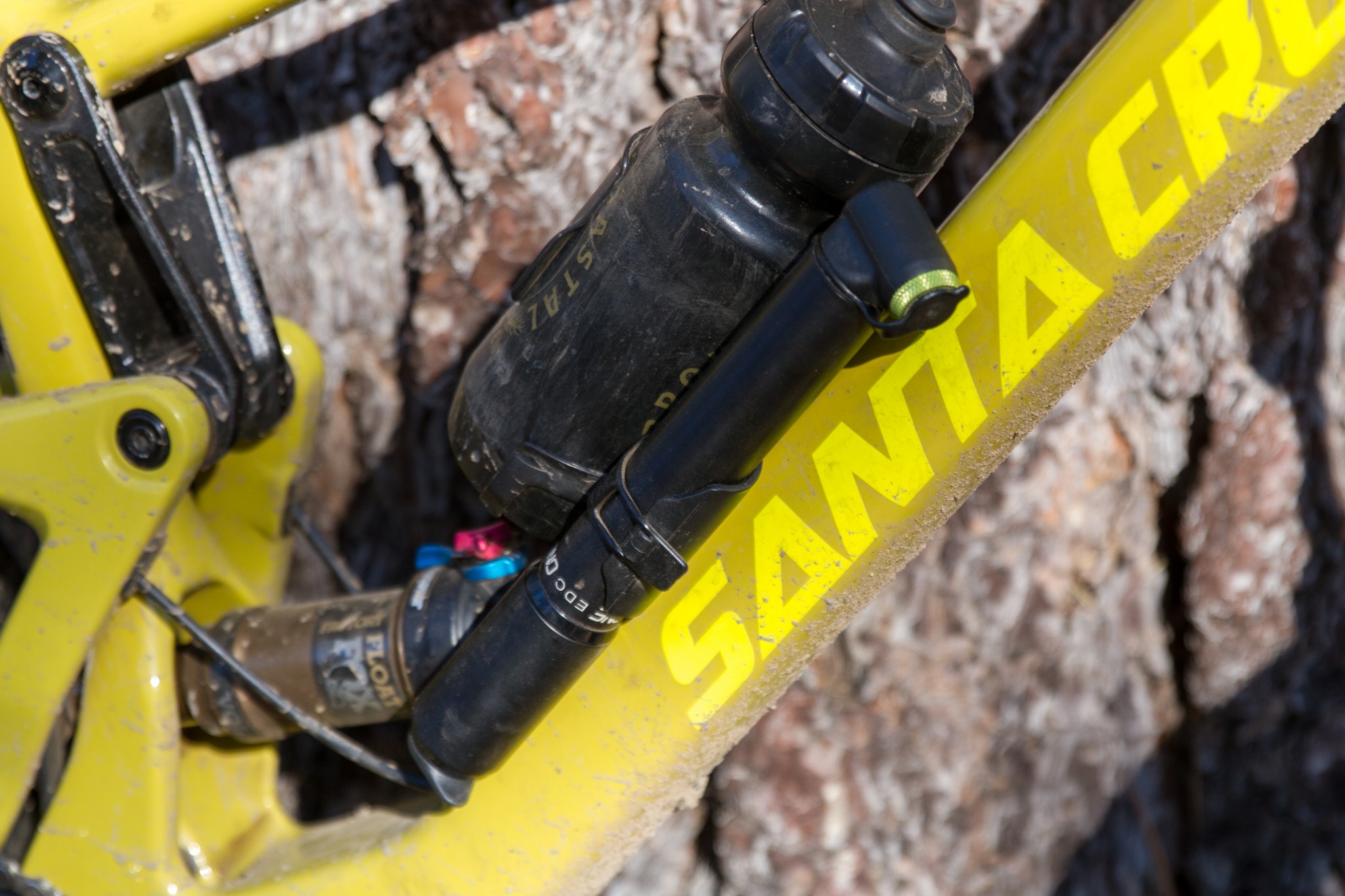

When we tested the original EDC we stored it in the steerer tube, but this time around we chose to try out the frame-mounted EDC Pump to see how it works. The pump conveniently attaches to your bottle cage mount and stores the tool inside its hollow handle. Like most frame pumps, it can be a bit time-consuming and labor-intensive to pump up a tire, but the pump's head doubles as a CO2 inflator for those times where you're in a rush.
Ergonomics
The EDC V2 isn't the most ergonomic model we tested, but it holds its own considering the multi-tool's small size. Despite being only two and a quarter inches long and three-quarters of an inch wide, the multi-tool provides decent leverage and the tools are long enough to access hard-to-reach bolts. The sides of the frame are smooth and rounded, allowing you to apply pressure to unstick or adequately torque a finicky bolt without any discomfort. We wouldn't recommend this tool to unstick corroded bolts or as a workshop mainstay, but for emergency on-trail fixes it will absolutely get the job done.

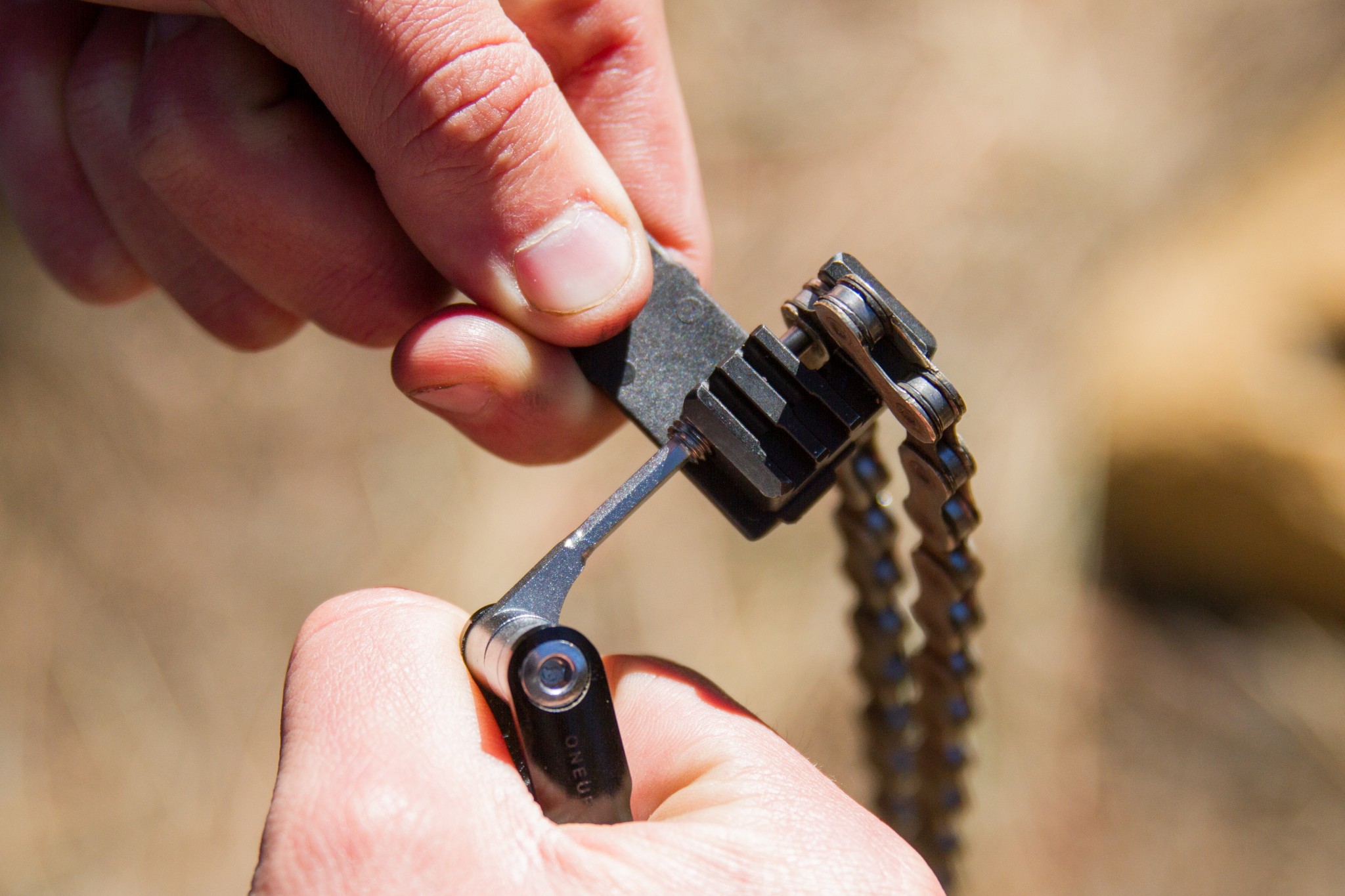

In our opinion, the EDC V2's best ergonomic feature and its biggest improvement over the original version of the tool is the chain breaker. The original EDC's chain breaker required the user to hold the chain in a kinked position in order to punch out the pin, but the new version follows a more traditional design and lets you lay the chain flat across the surface in front of the pin punch. When using the tire lever as a handle for the chain breaker and the mini tool to punch out a chain pin you have plenty of leverage to get the job done. Once you have everything set up properly, this is one of the easiest chain breakers to use among any multi-tools we tested.
Portability
Despite being the biggest tool in our test at seven and a half inches long, the EDC V2 receives a perfect score in our portability metric. We think the fact that this tool can live in your steerer or in a frame-mounted pump makes it more portable than any of the traditional multi-tools we tested. With the EDC, it's improbable that you'll forget your multi-tool at home, no last-second searches through the garage, and most importantly, no need for a pack on short to mid-length rides. Add in the fact that this tool is on the lighter end of the spectrum at just 128 grams for the whole package. Most of the tools we tested come in around the 160 to 170-gram range for a similar number of functions.

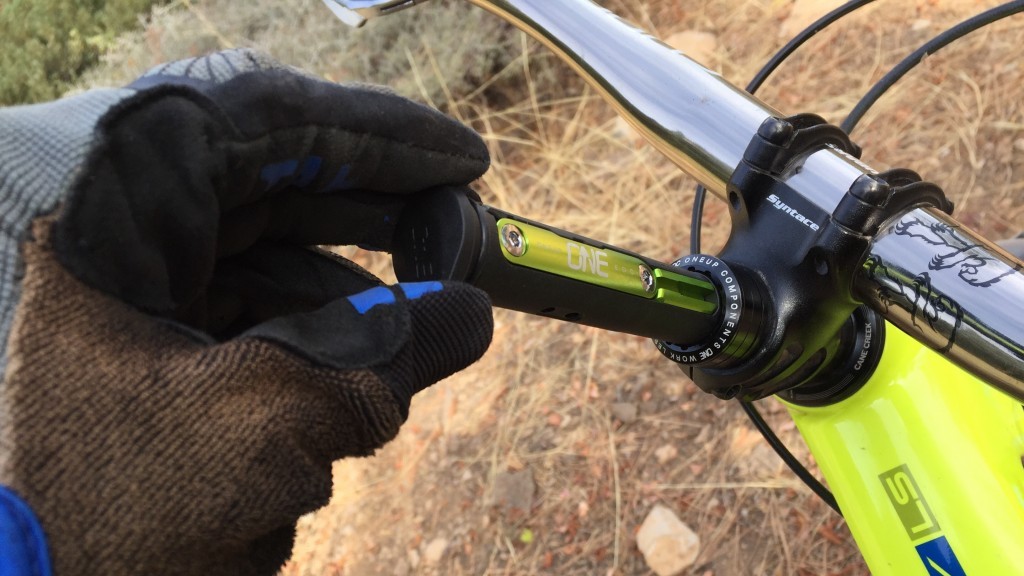

The only real portability issue with the EDC V2 is that your bike has to be modified to store it in your steerer tube. We tested the original EDC using the steerer storage. Setting it up is a relatively straightforward process that involves removing the star nut, threading your steerer using OneUp's tap and guide, and installing their top cap, but it does take some time and additional parts at an additional cost. One up also makes a new Threadless Carrier that fits into your steerer tube to carry your EDC tool without threading it. Once your bike is set up you can simply slide the EDC into and out of the steerer, but if you want to swap over to a different bike you're out of luck. The pump storage system that we tested allows you to use the EDC on multiple bikes more easily, but you will still have to swap over the pump's bottle cage mount if/when you do.
Ease of Use
The EDC V2 has some upsides but also some considerable downsides when compared against the ease of use of a traditional multi-tool. On the positive side, the tool is always within arms reach when you're out on the trail. You won't have to dig through your pack or pull out all the contents of your saddlebag to access it. This is especially true if you're storing the tool in your steerer tube rather than the pump. Once you have the small multi-tool piece in hand it's very straightforward. The mini tool uses a traditional layout and each of the bits is easy to identify and access. On the negative side, however, is the fact that you can't use the tool without separating the system into its three pieces. This means you'll either need an extra set of hands or you'll need to leave a couple pieces in the dirt while you're working. Reassembling and storing everything back in the steerer or pump can be a bit finicky at first as well, but once you're familiar with the system it's pretty straightforward.
We also dinged this tool's ease-of-use score slightly because of the setup required. Unlike the vast majority of plug-and-play multi-tools out there that you can pull out of the packaging and take out on a ride, the EDC V2 requires some setup whether you're storing it in your steerer or the pump. The setup isn't too difficult or time-intensive, but it's an added step before you're able to hit the trails. For riders who can't stand carrying a pack or having a multi-tool jangling around in their pocket, it's absolutely a worthy time investment.
Construction Quality
Overall, the EDC V2 is a well-made and sturdy product. The updated version has a sturdier steel chain breaker and spoke wrenches that won't round out over time. The wrenches on our test tool look just as fresh after a month of heavy use as they did when we pulled it out of the package.
Our biggest concern with this model is the largely plastic construction. The mini tool and chain breaker's fit in the main package rely on plastic pieces that snap together, and after our test session, they were already showing noticeable wear. Considering that most users hopefully won't be using the tool as much as we were when we were deliberately putting it through its paces, we think it will last you a long time. We do recommend being gentle when removing and replacing the mini tool and tire lever, however.
Should You Buy the OneUp Components EDC V2
If you are looking to carry tools on the bike and out of your way, the OneUp Components EDC V2 conveniently hides in your steerer tube. The small, mobile tool offers 20 different functions to keep you on the trail, including a chain breaker and tire levers. The EDC also offers two storage compartments, one small and one large, in case you need to bring a few other items with you. Another nice option, the EDC can be carried in OneUp's frame mounted EDC pump if you own one already. The hefty price tag may deter some riders from adding it to their rig, which is an important consideration when purchasing any tool.
What Other Multi Tool Should You Consider
If you are looking for a tool that is mounted on the bike, the Blackburn Switch Wrap may also fit the bill. The Switch Wrap offers 15 functions and storage for a tube, CO2 cartridge, and tire lever, and attaches to the bike frame so you can go pack free. If you want to remain light and minimal, the PNW Components Pebble Tool is an ultralight package with the basic hex and Torx bits for the usual adjustments, and a Dynaplug to fix a tubeless flat. Another legitimate option is the Lezyne Super V 22, especially if you're looking for a lot of function in a lightweight package. The V 22 weighs in at 141 grams and packs 22 usable tools into the folding multi tool design.
