Kuat Piston Pro Review

Ease of Everyday Use

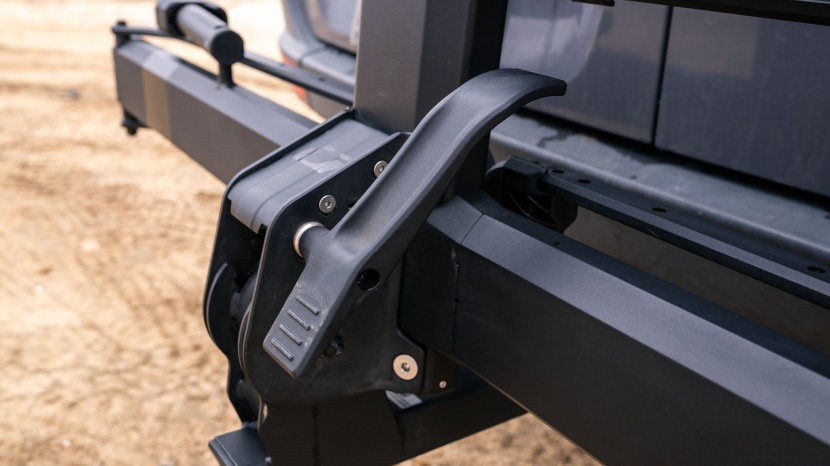

Most hitch-mount tray racks are easy to use because of their design, but the Piston Pro is even easier, especially compared to other models using the same tire-hold design. Kuat prioritized ease of use and convenience when designing this rack, and it's a delight to use. Every feature is well thought out and well implemented. The PedalPivot tilt-release lever is easily accessible with your foot and quick to deploy when your hands are likely full. The OneTap hydro-pneumatic tire arms are exactly that: one tap. The FastFit wheel chocks make adjusting the rack for different wheel sizes a one-handed job, something most other racks require tools to accomplish. Our favorite part of this style of rack is that it interfaces only with your bike's tires, with no clamps on your muddy paint and no straps over your fancy wheels; there are no worrying wear points.

Loading bikes is as simple as lifting them into position and pushing the arms closed. Pushing the load arms against the bike puts pressure on your tires, so you're pushing against tire pressure while the arms ratchet tighter. We can't emphasize enough how easy this process is; once your bikes are unloaded, you simply push the load arms back to the rack base, where they lock in place. If you want to load a heavy e-bike (up to 67 lbs) or make it easier to load your non-assisted bike, Kuat sells a ramp that lets you roll the bike onto the rack.

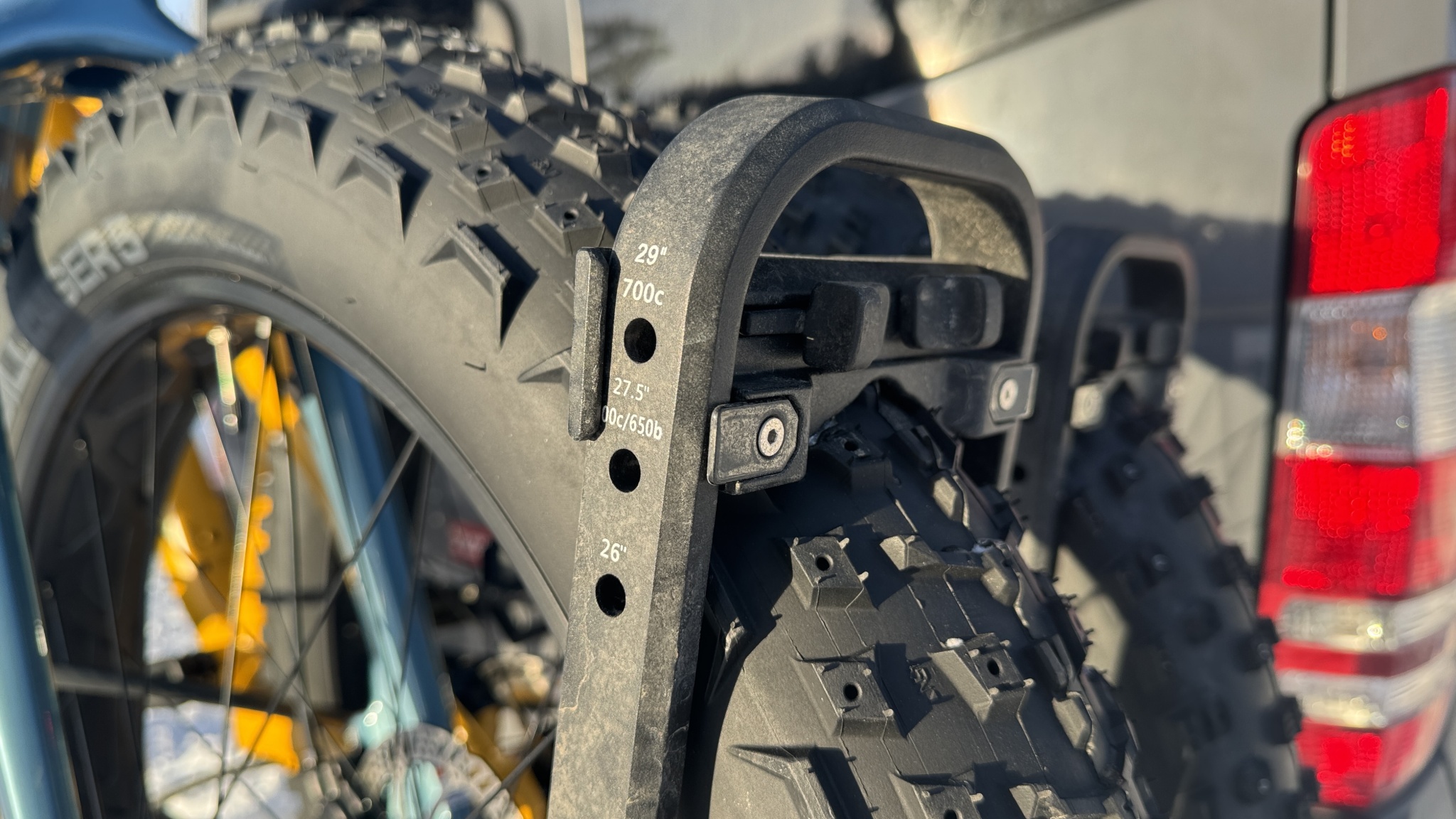

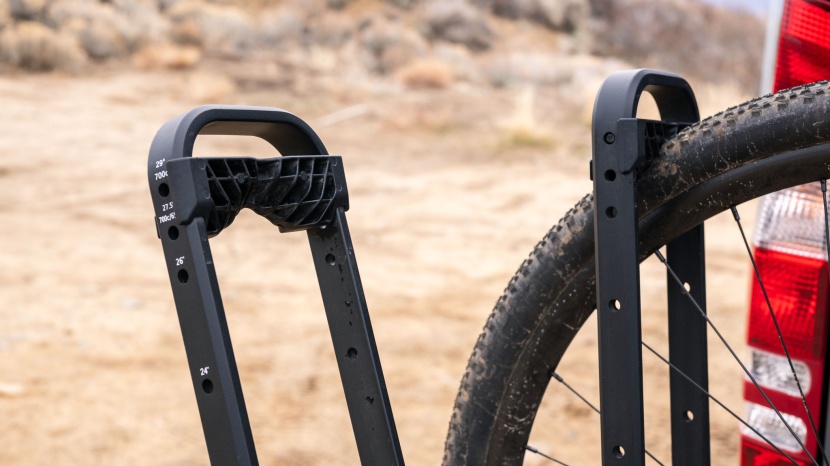

Different-sized wheels are easily accommodated; while it's easiest to adjust before lifting the bike onto the rack, the one-handed wheel chock adjustment is incredibly convenient and won't leave you hanging. The tire load arms have laser-engraved markings showing where to position the tire cradles. From the top, the positions are 700c/29", 650b/27.5", 26", 24", 20", and fender kit, which requires an additional part for bikes with fenders. These six positions cover a wide range of fit, allowing most bikes to travel safely on this rack; fat bike tires use the 29" setting.

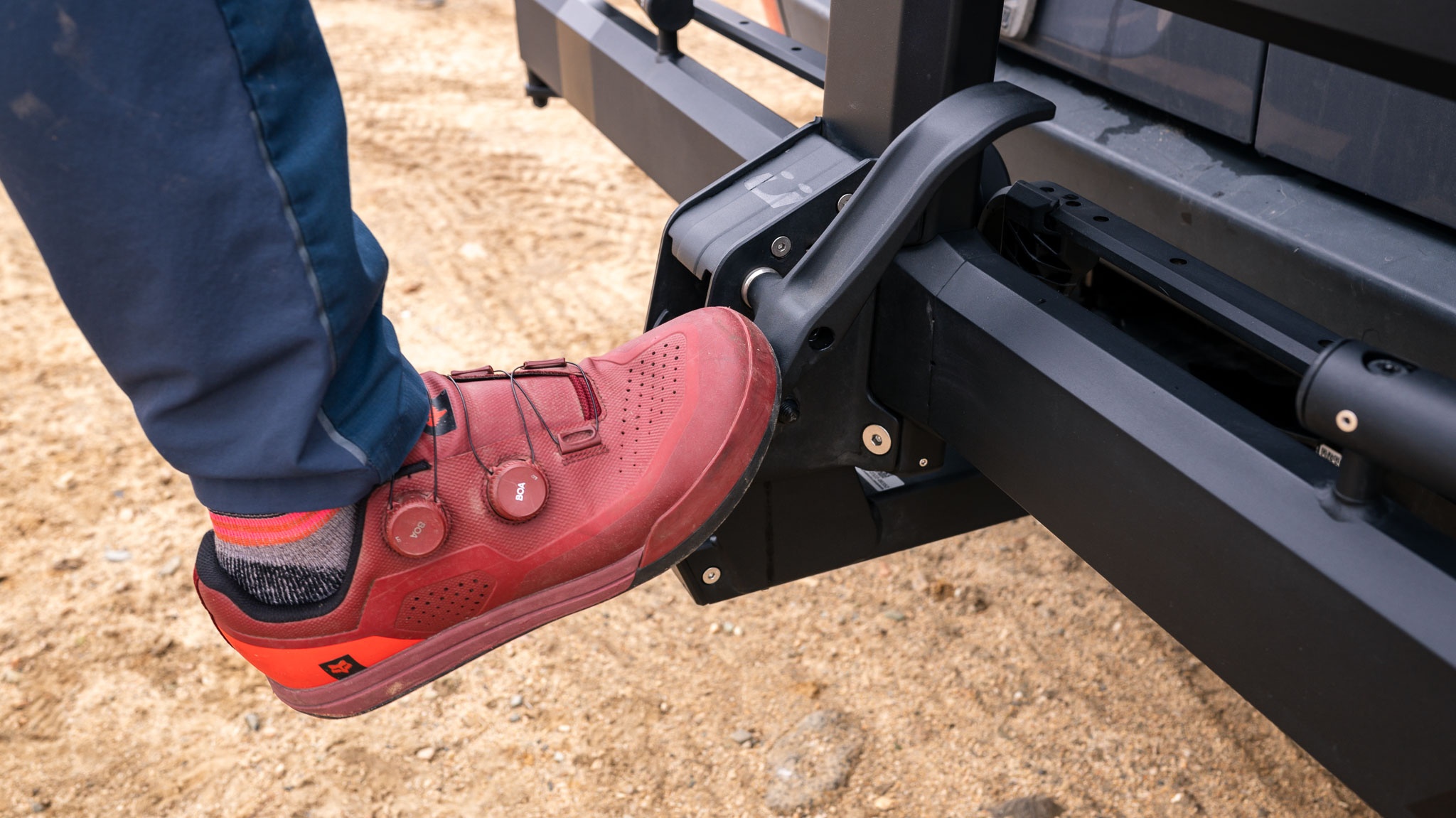

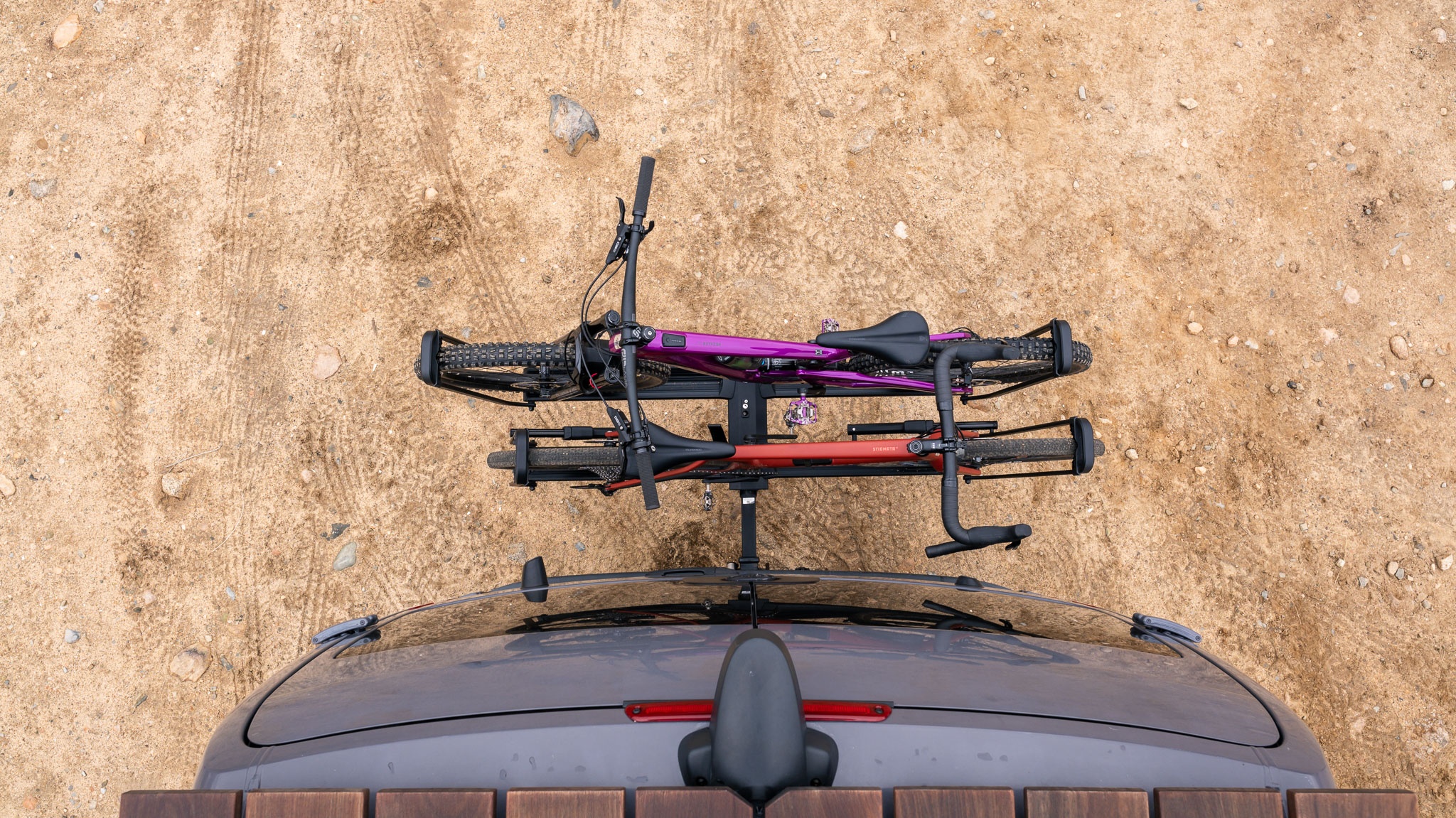

There is no lateral adjustment mechanism; instead, you move the bikes fore or aft to prevent interference, then tighten the tire arms when the bikes are in the desired position. Not having a fixed position for each bike makes it easy to prevent interference between saddles and handlebars; the outer rack is also slightly higher, which helps keep the bikes separate. When not hauling bikes, the rack folds against the back of the vehicle and maintains a fairly low profile, sitting 13.5" proud of the hitch receiver. The rack also tilts down to access a hatchback or trunk. You can tilt the rack up or down with a quick kick to the PedalPivot, making it a hands-free operation. If you want unfettered access to the back of your vehicle or need extra clearance for van doors, Kuat sells a pivoting arm that fits between the rack and hitch, letting the entire assembly swing out 90 degrees.

Ease of Removal and Storage

Installing the Piston Pro is straightforward and user-friendly, with most steps focused on security. As for storage, it is still a big, cumbersome rack that isn't easy to hide in your garage. It will occupy a large footprint and isn't particularly easy to stash away. In its folded position, the rack is still 59.5 inches long, 23 inches tall if balanced, and 19.5 inches deep. Riders who only use the rack seasonally or occasionally might remove the two main tray bolts and disassemble the rack for storage. With most racks, we wouldn't really consider disassembly for storage, but putting the Piston Pro together was so quick and easy that it might be an option for those tight on space.

To remove the Piston Pro from the vehicle, you start by unlocking the stainless steel hitch pin lock and sliding the hitch pin out of the receiver. Next, you use the specially provided 8mm security key to open the FlatLock cam that tightens to prevent the rack from wobbling. You'll need to be responsible for the security key as it doesn't lock into the rack as it does on the Piston Pro X. This model lacks LED lights, so you don't need to plug the rack into your hitch connection.

Weighing 62 pounds and 11 ounces, the Piston Pro isn't exactly lightweight, so you should minimize moving it on and off your vehicle. As such, it's a great rack for riders who typically leave it mounted year-round or only remove it seasonally. If you remove and reinstall your rack each time you use it, however, you may want to consider a model that is easier to carry and store.

Versatility

Versatility is the Piston Pro's strong suit; with a 67lb per tray weight limit and tire load arms, and designed to fit up to 5" tires, there aren't many bikes you can't carry. This rugged transporter can handle wheelbases up to 53" and be upgraded to carry 3 or 4 bikes. Adding bikes lowers the per-tray weight to 50 pounds for 3 bikes or 40 pounds for 4 bikes. Users hoping to mount this rack on an RV should be advised that only the 2-inch, 2-bike version is approved for RVs, and there is a 42-pound weight limit per bike.

Not having dedicated spots for the wheels to rest and using tire hold arms gives the Piston Pro and other racks like it an advantage. Bikes with missing tubes, unconventional forks, strange shapes- it really doesn't matter; only grabbing the bike tires eliminates so many variables that foil other racks. The tire load arms handle wheel sizes from 20" to 29" and pose no danger to your bike's wheels or rims. There is no minimum width for the V-shaped tire chocks; they hold narrow road bike wheels just as securely as wide mountain tires. Kuat claims bikes with wheelbases up to 53 inches (1346mm) should fit, which is long enough for most beach cruisers and DH mountain bikes.

Security

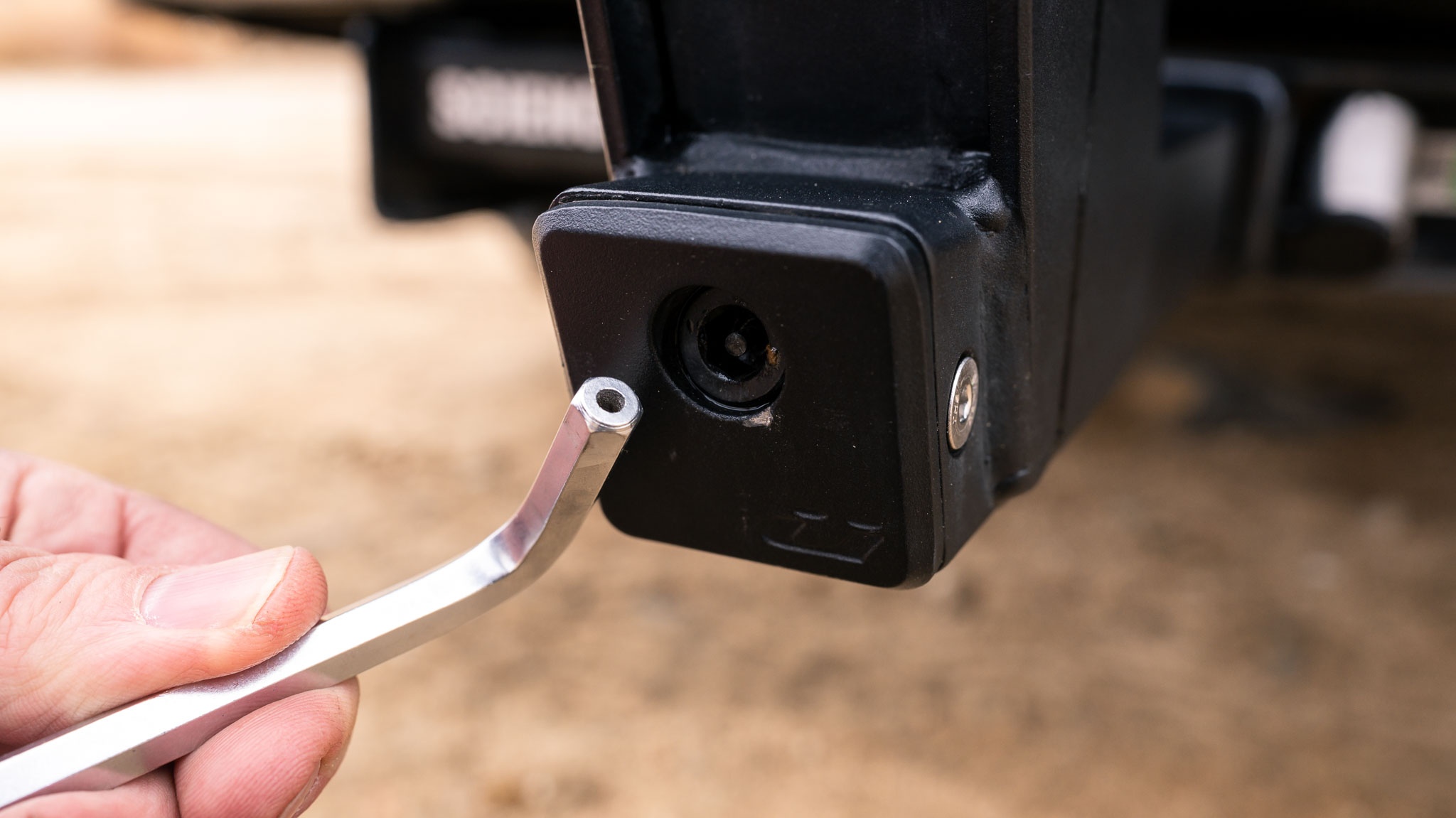

With a rack this expensive, you'll be relieved to know that Kuat takes security seriously. The included stainless steel hitch pin locks the rack to the vehicle and features a cover to keep dirt and debris out of the keyway. Additionally, the patented FlatLock cam tightens into the hitch receiver to prevent any rack wiggle using an 8mm security key.

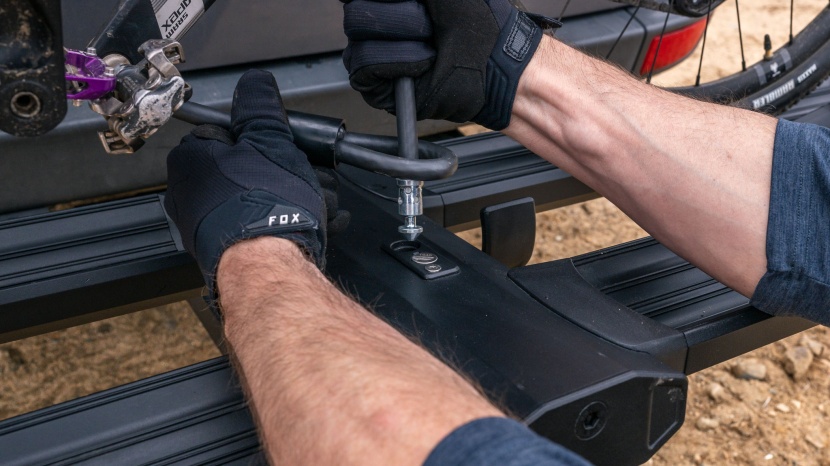

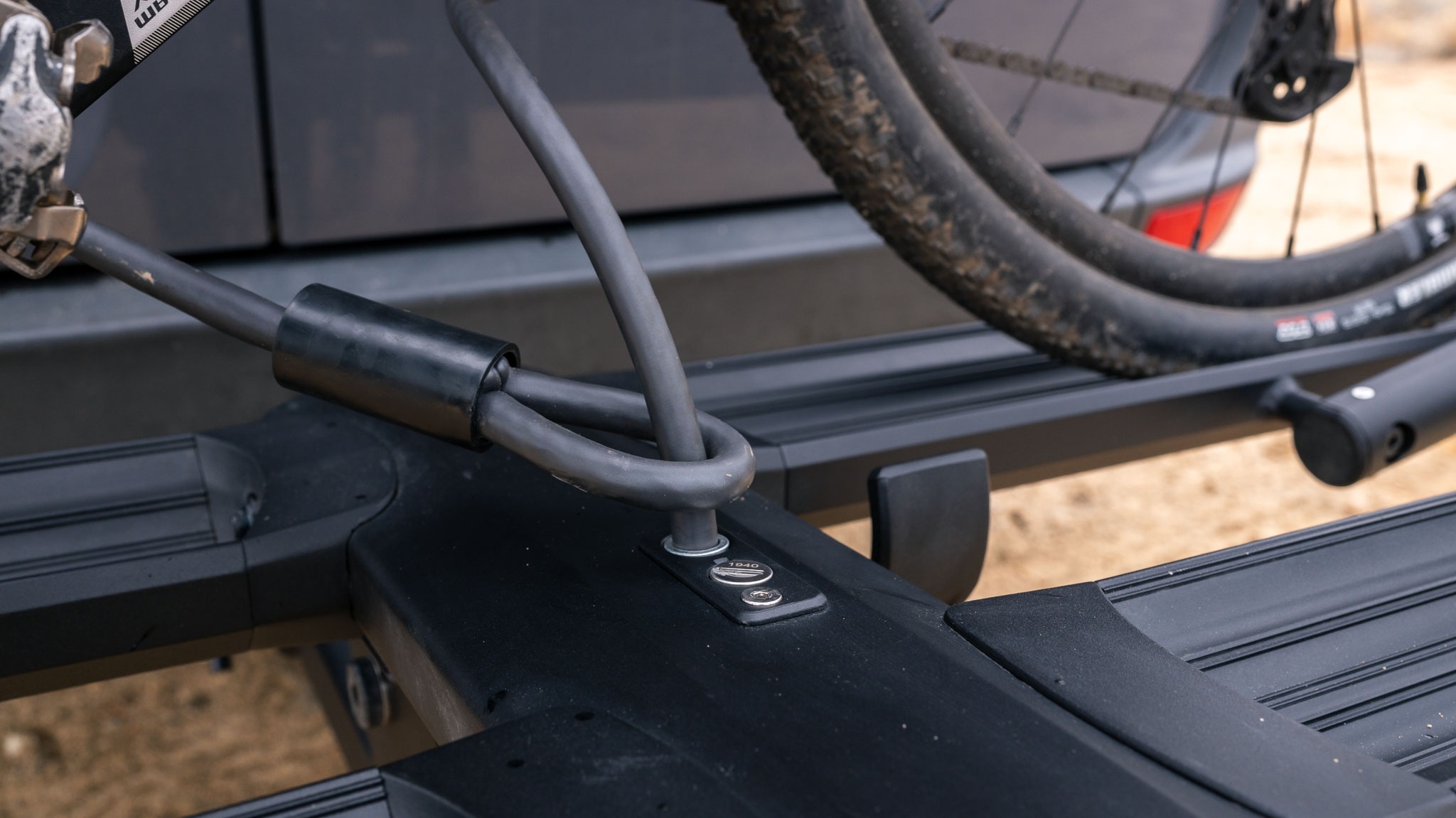

Locking bikes to the rack is easy with Kuat's ten-foot-long security cable; the 12mm cable has a noose end that lets you loop it around a frame or wheel, and a terminal on the other end that locks into the rack's main body. The key for this lock is the same key for the locking hitch pin.

Ease of Assembly

Assembling the Piston Pro X isn't difficult, but a few steps will save you time and energy. If you buy this rack online as we did, you'll need to assemble it. Finding this rack at your local bike shop likely means that you can forego that process and get straight to enjoying it. We found the instructions clear and easy to follow, with the two tools needed for assembly included.

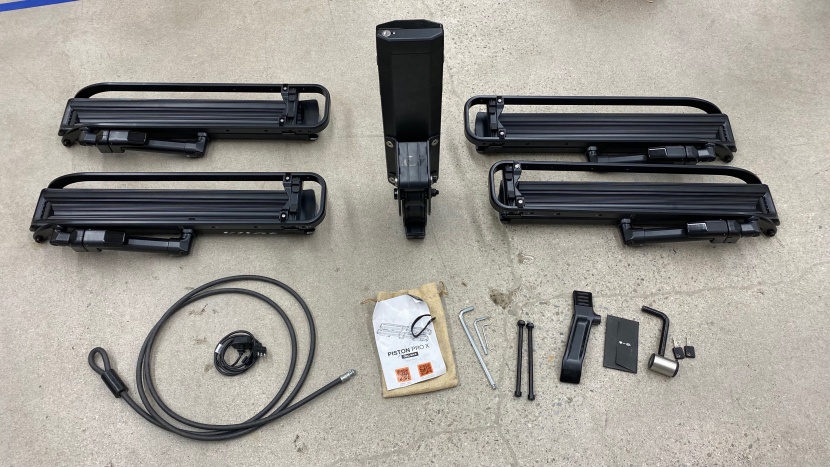

Our rack arrived in five main pieces: the center beam and the four pieces that make up the trays. The user manual includes written instructions with helpful diagrams that detail the rack assembly process. If you're feeling tech-savvy, scan the QR code to go straight to Kuat's assembly video. Pro tip from Kuat: Install the center beam into your vehicle's hitch and assemble the rack in place. You can also do this off the vehicle, but it's nice to have the rack supported while you twist nuts and bolts.

Durability

The Piston Pro is 98% metal, which bodes really well for durability. Our racks are constantly exposed to the elements and UV, which takes a toll on plastic and rubber pieces. Rather than cut costs here, Kuat used all-stainless hardware, name-brand IGUS bushings, and an incredibly durable powder-coat finish.

The powder-coated finish on this rack is similar to other Kuat racks but notably not the fancy TIGER DRYLAC used on the Piston Pro-X. The rack looks nice when it's clean, but its texture seems to hold on to road grime more than its fancier counterpart. The finish is incredibly durable and should protect the underlying metal rack for many years. Despite the tough coating, we did scratch the trays of our rack using carbide-tipped ice studs in our tires, fat bikers beware of the damage that ice spikes can do, this isn't an issue of rack durability as much as misuse.

We installed our test rack toward the end of fall and used it throughout a tough winter for fat bike testing. During winter testing, we encountered an issue with the ratchets in the piston arms. There were certain circumstances where there rack refused to latch and wasn't able to hold a bike, possibly due to cold and ice. We contacted Kuat, and they recommended using a de-icer spray inside the piston arm where the ratchet mechanism is located. While we found that to work, the issue didn't present consistently. We can't be sure how all the other racks we've tested would fare in snow and freezing temps because many of them can't hold fat bike tires and thus don't get deployed honor harshest winter days. All of the Piston Pro's moving parts still feel impressively smooth and when clean, the rack still looks new. If we're wrong about how durable this rack is, Kuat should back it up with their “No worries” warranty.

Previous Next

Should You Buy the Kuat Piston Pro?

Absolutely. Take it from a self-professed rack-geek; this rack is so much better than its competitors that the extra cost seems incidental. Kuat has built a rack that is aesthetically pleasing, durable, easy to use, and not frustrating. After using the Piston Pro and Piston Pro X for months, it feels disappointing to use any other rack on the market; this product is functionally superior. This deluxe model checks all of the boxes for us; we love how its important operations only require one hand (or a foot). We also realize how expensive this model is, and despite its price, we still wholeheartedly recommend it.

What Other Hitch Bike Racks Should You Consider?

If you've read this far, you understand how much we like it, so it should be no surprise. We recommend the Piston Pro X, which is this rack but turned up to 11. It features working LED brake lights, Kashima-coated piston arms, a super durable coating, and tools that lock in place. If you'd rather save your cash for bike parts, check out the Rocky Mounts MonoRail; it's a phenomenal value. For a fraction of the price, the MonoRail gets your bike to the trailhead. Want a rack that is just a little bit less awesome, check out the Thule T2 Pro XTR which has been a GearLab favorite for many years and carries a much more reasonable price tag.
