Crankbrothers Double Shot 2 Review
Our Verdict
Compare to Similar Products
This Product
Crankbrothers Double Shot 2 | |||||
---|---|---|---|---|---|
Awards | Another Great Trail Riding Pedal | Best Bang for the Buck | Best Dual-Function Clipless and Flat Pedal | ||
Price | Check Price at Backcountry Compare at 3 sellers | $105.57 at Amazon Compare at 3 sellers | $53.50 at Amazon Compare at 3 sellers | $105 List $94.04 at Amazon | $49.09 at Amazon Compare at 2 sellers |
Overall Score | |||||
Star Rating | |||||
Bottom Line | Its a do everything pedal, but its shortcomings are just too apparent | Shimano's latest enduro approved pedal grows up a bit and the refreshes are mostly welcome | A solid choice for those wanting next generation stability at an entry-level price point | Impresses on the flat side and gets the job done on the clipless side | If you want to travel light on a budget, this is your pick |
Rating Categories | Crankbrothers Doubl... | Shimano PD-M8120 XT... | Shimano ME700 | Xpedo Ambix | Shimano M520 |
Ease of Exit (25%) | |||||
Ease of Entry (20%) | |||||
Adjustability (20%) | |||||
Weight (15%) | |||||
Platform (10%) | |||||
Mud Shedding Ability (10%) | |||||
Specs | Crankbrothers Doubl... | Shimano PD-M8120 XT... | Shimano ME700 | Xpedo Ambix | Shimano M520 |
Weight per Pair (grams) | 406g | 430g | 482g | 384g | 374g |
Weight of Cleats and Bolts (grams) | 33g | 51g | 50g | 52g | 50g |
Cleat Type | Cranks Brothers brass | SPD mountain | SPD mountain | XPEDO XPC | SPD Mountain |
Style | clip/flat | mini-cage | mini-cage | clip/flat | no cage |
Platform Dimensions (lxw) | 94 x 78mm | 100 x 71mm | 100 x 74mm | 102 x 84mm | 42 x 61mm |
profile height | 21mm | 18mm | 19mm | 19mm | 22mm |
Q-Factor | 57mm | 55mm | 55mm | 56 mm | 55 mm |
Total Width from Crank Arm | 95mm | 92mm | 93mm | 100mm | 80mm |
Entry | 1-sided | 2-sided | 2-sided | 1-sided | 2-sided |
Adjustable Tension | no | yes | yes | yes | yes |
Traction Pins | 8 nubs | 0 | 0 | 8/side | 0 |
Bearings | Igus LL glide bearing / Enduro cartridge bearing | dual angular contact, metal retainer | dual angular contact, plastic retainer | 3 Sealed Cartridge | Dual Angular Contact |
Cage Material | A380 aluminum | anodized and machined aluminum | painted aluminum | Aluminum | n/a |
Pedal Wrench Type | 8mm allen | 8mm allen | 6mm allen or 15mm open end | 8mm allen | 8mm allen |
Our Analysis and Test Results
The Crankbrothers Double Shot 2 pedals are intriguing, pairing the acclaimed egg beater mechanism on one side with a rough, concave platform on the other. Could it be the best of both worlds? Sadly, no.
Out of the box the pedals are impressive, they're thin and relatively light with an industrial-like finish on the bodies. The clipless mechanism and surrounding bat wing structure look like something from a supercar. Crankbrothers is known for giving a little extra in the design department, and these pedals look pretty cool.
Performance Comparison
Ease of Entry
The platform is sufficiently large and acts as an easy target for your shoe. We were able to clip into the Double Shot with ease most of the time but had a couple of incidences of slipping off the clipless side. Most of the pedals we tested are easier to engage and the Double Shot 2 received a low score as a result
Ease of Exit
The Double Shot 2 pedals are more competitive in this metric. The mechanism doesn't hesitate to release your shoe, and there is nothing to hang up on when releasing, creating a fast, fluid exit. It rates well in this metric as a result.
This pedal offered significantly less trouble than we experienced with the HT D1 and its complicating traction pins.
Adjustability
Swapping your cleat position to change the release angle is the only adjustment available on the Double Shot 2. The HT D1, in contrast, offers adjustable release tension, swappable cleats, and adjustable pins.

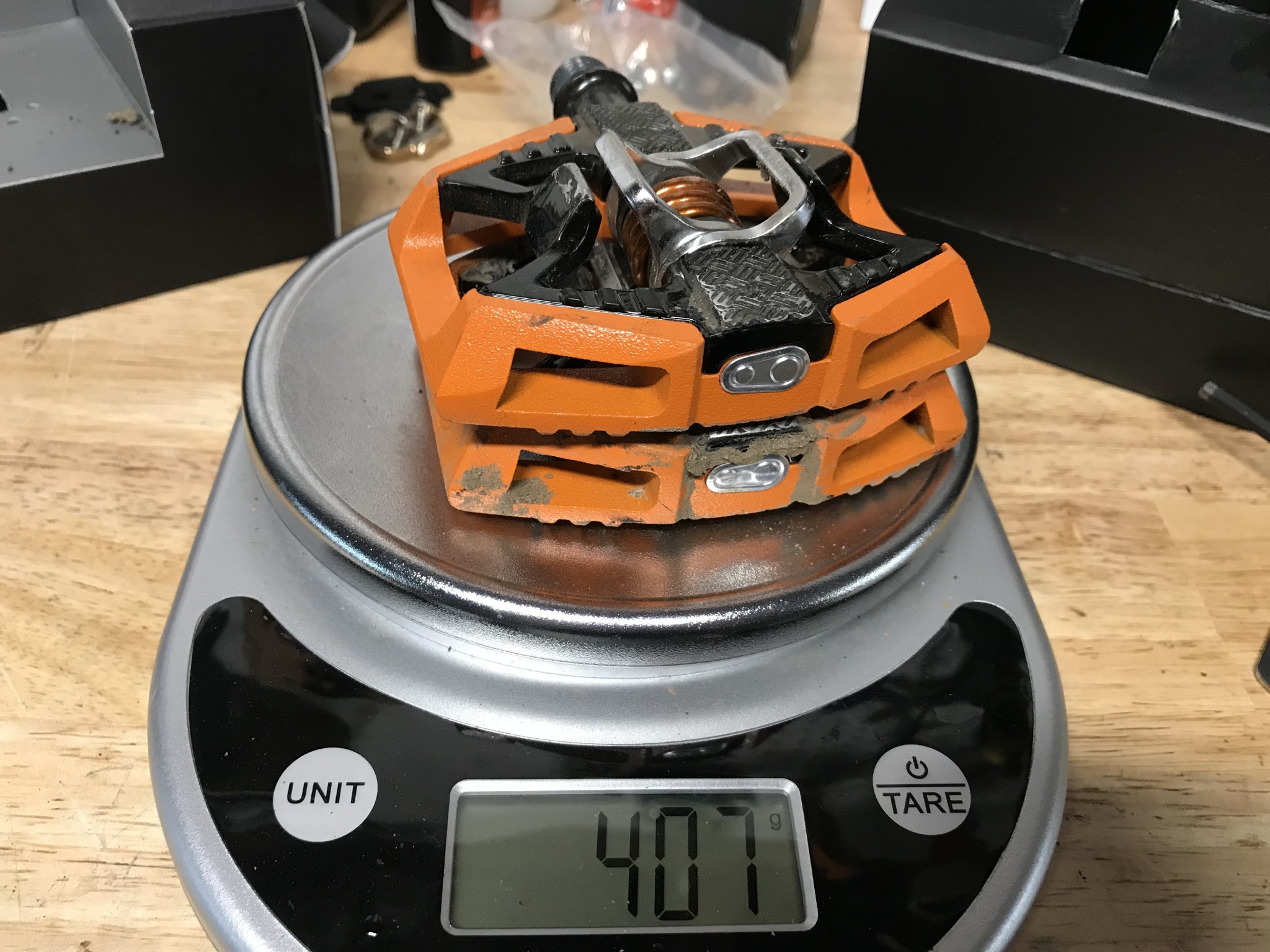

Weight
At 406g per pair, the Double Shot 2 pedals are respectably lightweight. If you were to upgrade to the Crankbrothers Double Shot 3 with traction pins for $125, you'd save 3 grams and add a little bit of security on the flat side of the pedal.

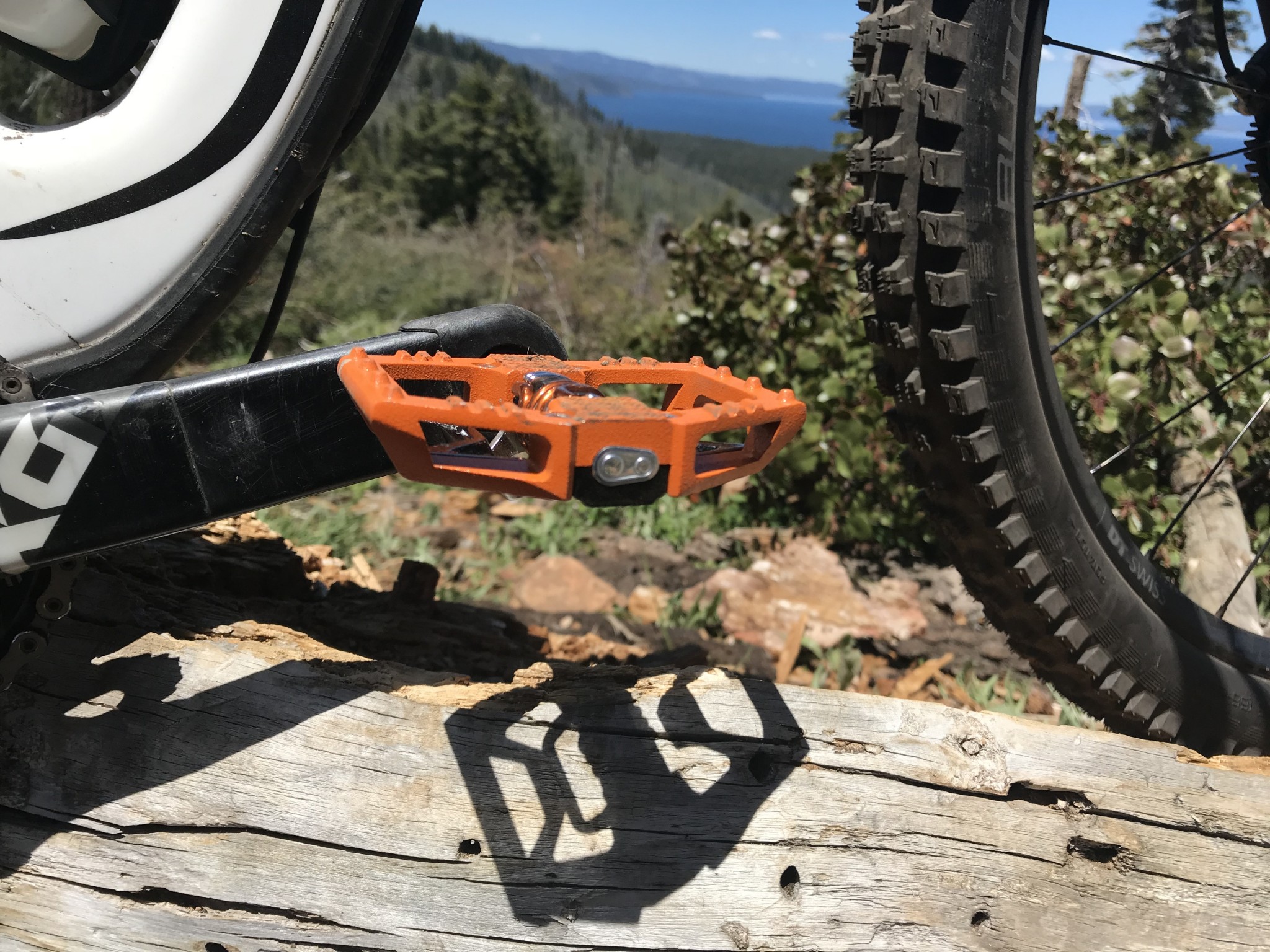

Platform
The rough A380 aluminum body has a unique feel that offers a tough yet refined feel. Unfortunately, it doesn't offer a lot of stability or grip. The platform features nubs and ribs cast into the slightly concave shape. Using shoes with a Vibram sole, we found the flat, platform traction to be woefully insufficient. The cast nubs and ribs offer minimal traction against the shoe rubber and do not inspire confidence.
Switching to hard soled XC shoes had a predictably poor outcome and swapping to 5.10 stealth rubber didn't offer the life-saving grip we were hoping for. When the platform surface got wet, traction suffered even more, leaving us disappointed in the flat side of this pedal.

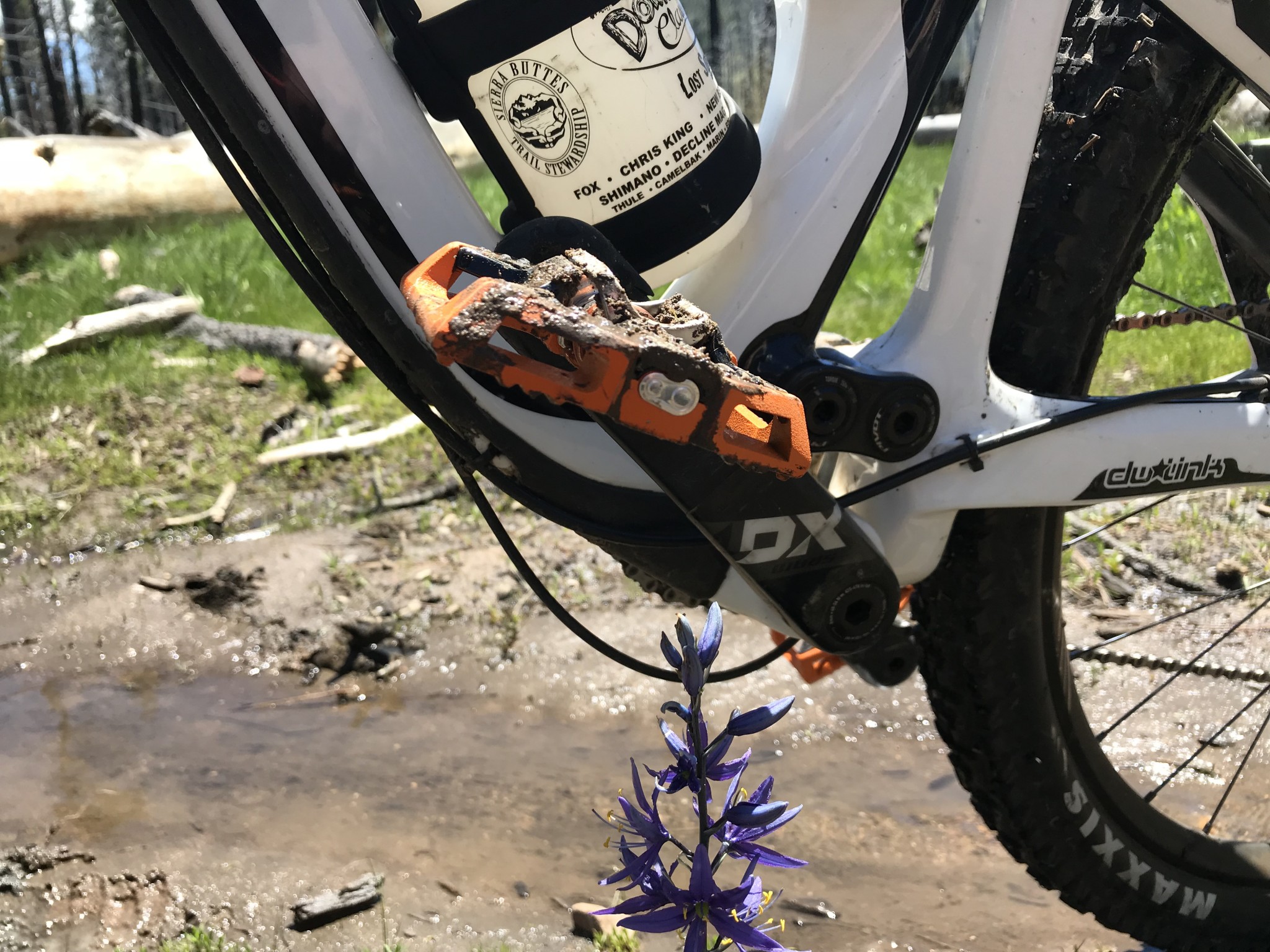

Mud Shedding Ability

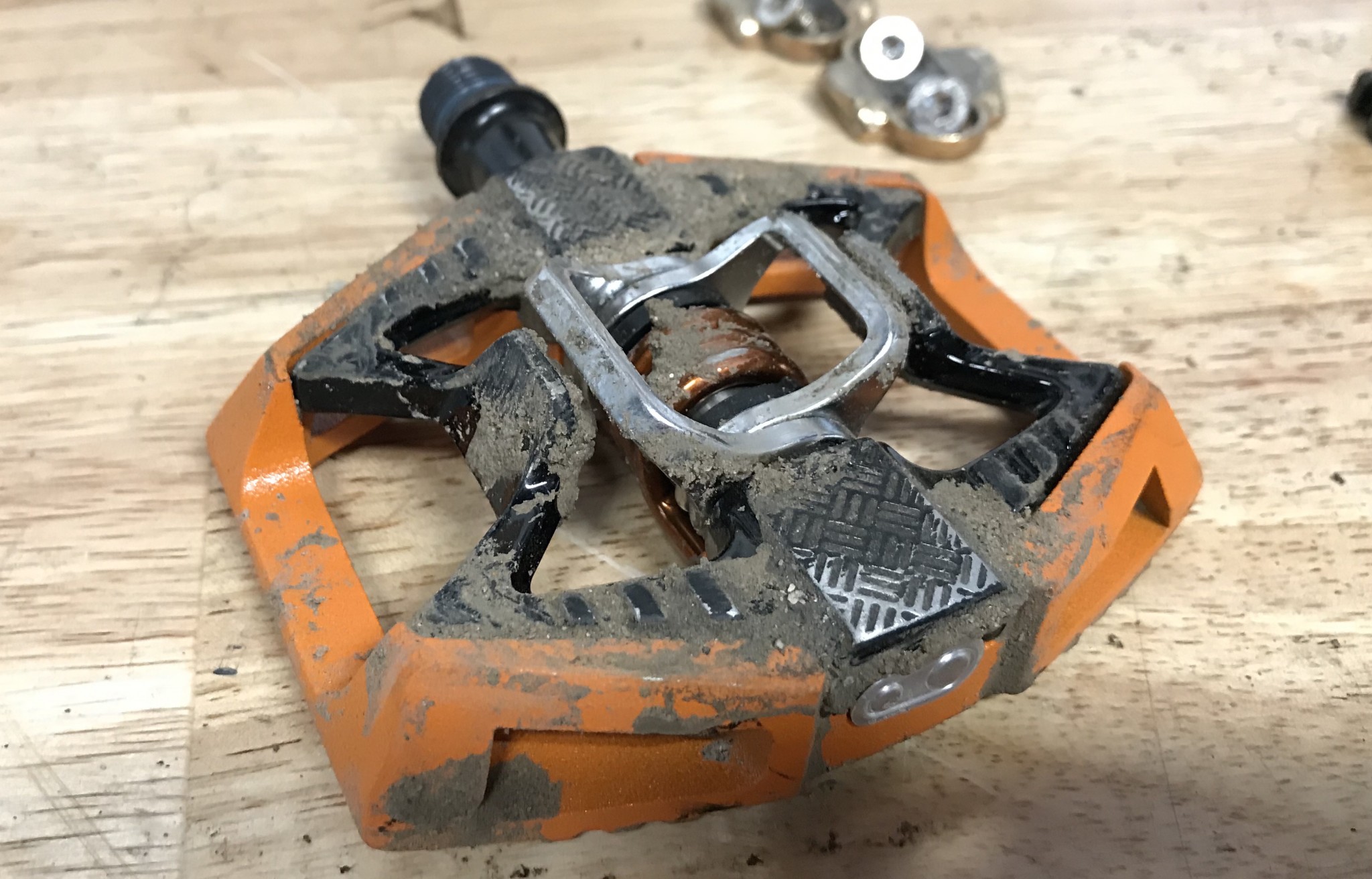

One accepted fact in the world of clipless pedals is that Crank Brother's egg beater mechanism works phenomenally well in mud. It's a revered design that leaves mud everywhere to go and provides very few places that debris can hang-up.
On the Double Shot 2's clipless side, Crankbrothers modified the egg beater mechanism for one-sided engagement. It this iteration it is held in place by a black X shaped insert. Clipping in is as simple as pushing down. The wings spread and the cleat engages. If there is mud in the engagement, it's forced out by the cleat. However, debris can lodge between the black X shaped insert and the engagement wing.
This platform insert is a choking point. In several of our tests, we fouled the pedal, making it inaccessible when debris clogged that very crucial spot. In their attempts at making a one-sided clipless mechanism, Crankbrothers impaired their long lauded design.
Value
The Double Shot 2 is the mid-priced option in the Double Shot line up and reasonably priced compared to the competition. While we find the $90 price to be attractive, the $125 Double Shot 3 with adjustable traction pins would feels much safer.
Conclusion
While we think that there's a big potential market in dual-duty pedals, the Double Shot 2 comes up short on too many of our metrics to call it recommended gear.
Other Versions
There are two other versions of Crankbrothers Double Shot, here's how they compare. The entry-level, $59, Double Shot 1 uses a plastic resin body, which doesn't help with the already lackluster traction but saves on weight.
The Double Shot 3 at $125 offers an aluminum body with adjustable traction pins, providing some much-needed traction on the flat side. While none of the pedals address the engagement issue we experienced in the mud, we find the Double Shot 3 the only Double Shot we'd recommend for trail riding.
