Crankbrothers Double Shot 3 Review

The idea is so much better than the execution, this pedal doesn't provide the performance a serious rider wants
gearlab tested logo
Crankbrothers Double Shot 3 Review
Credit: Crank Brothers
Price:  $140 List
  • 1
  • 2
  • 3
  • 4
  • 5
Manufacturer:   Crank Brothers
By Joshua Hutchens ⋅ Senior Review Editor  ⋅  Jun 10, 2019
53
OVERALL
SCORE


RANKED
#20 of 21
  • Ease of Exit - 25% 7.0
  • Ease of Entry - 20% 5.0
  • Adjustability - 20% 3.0
  • Weight - 15% 6.0
  • Platform - 10% 5.0
  • Mud Shedding Ability - 10% 5.0

Our Verdict

The Crankbrothers Double Shot 3 is a dual purpose pedal that combines a flat pedal on one side and a clip-in on the other side. This novel idea finds imperfect execution at the hands of Crankbrothers. Much like the Double Shot 2, the 3 has a slightly concave and textured flat pedal surface on one side and an egg beater clipless mechanism on the reverse allows riders to choose to be clipped in or not. The pedals are stylish and thin but lack the performance characteristics that make mountain biking safe and fun. If you're fond of the idea of Clip / Flat pedal, check out the Xpedo Ambix.
REASONS TO BUY
Dual sided
Thin
Attractive design
Grub pins
REASONS TO AVOID
Slippery
Less mud clearance than others
Non-adjustable

Compare to Similar Products


Awards  Editors' Choice Award
Best Overall Mountain Bike Pedal
Top Pick Award
Another Great Trail Riding Pedal
Best Buy Award
Best Bang for the Buck

Price $99.50 at Amazon
Compare at 2 sellers
Check Price at Backcountry
Compare at 3 sellers
$105.57 at Amazon
Compare at 3 sellers
$53.50 at Amazon
Compare at 3 sellers
$49.09 at Amazon
Compare at 2 sellers
Overall Score Sort Icon
53
87
81
75
68
Star Rating
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
Bottom Line It's a do everything pedal, but its shortcomings are everythingStable platform, highly adjustable and available in a multitude of colorsShimano's latest enduro approved pedal grows up a bit and the refreshes are mostly welcomeA solid choice for those wanting next generation stability at an entry-level price pointIf you want to travel light on a budget, this is your pick
Rating Categories Crankbrothers Doubl... HT Components T2 Shimano PD-M8120 XT... Shimano ME700 Shimano M520
Ease of Exit (25%)
7.0
8.0
8.0
8.0
5.0
Ease of Entry (20%)
5.0
9.0
9.0
8.0
9.0
Adjustability (20%)
3.0
10.0
8.0
8.0
8.0
Weight (15%)
6.0
8.0
7.0
5.0
8.0
Platform (10%)
5.0
8.0
8.0
8.0
3.0
Mud Shedding Ability (10%)
5.0
9.0
8.0
7.0
6.0
Specs Crankbrothers Doubl... HT Components T2 Shimano PD-M8120 XT... Shimano ME700 Shimano M520
Weight per Pair (grams) 404g 380g 430g 482g 374g
Weight of Cleats and Bolts (grams) 33g 62g 51g 50g 50g
Cleat Type Crank Brothers brass HT X1 cleats SPD mountain SPD mountain SPD Mountain
Style clip/flat mini-cage mini-cage mini-cage no cage
Platform Dimensions (lxw) 94 x 78mm 83.5 x 68mm 100 x 71mm 100 x 74mm 42 x 61mm
profile height 19mm 17mm 18mm 19mm 22mm
Q-Factor 57mm 56mm 55mm 55mm 55 mm
Total Width from Crank Arm 95mm 90mm 92mm 93mm 80mm
Entry 1-sided 2-sided 2-sided 2-sided 2-sided
Adjustable Tension no yes yes yes yes
Traction Pins 8 4/side 0 0 0
Bearings Igus LL-glide bearing Stainless Steel sealed cartridge bearings dual angular contact, metal retainer dual angular contact, plastic retainer Dual Angular Contact
Cage Material A380 aluminum extruded/CNC machined aluminum anodized and machined aluminum painted aluminum n/a
Pedal Wrench Type 8mm allen 8mm allen 8mm allen 6mm allen or 15mm open end 8mm allen

Our Analysis and Test Results

The Crankbrothers Double Shot 3 pedals are born from a good idea. It seems logical that having a dual purpose pedal would appeal to a large range of cyclists. They have paired their egg beater mechanism on one side with an aggressive flat pedal on the other side. Can they pull it off? We think not. At first glance, we were quite impressed. They're thin and relatively light with a rough textured finish on the bodies. They have an industrial and somewhat futuristic look that is highly stylized and well finished. Crankbrothers is renowned for its cool looking design of products and packaging.

Performance Comparison


crankbrothers double shot 3 - even with eight grub pins, we had a hard time getting some grip on...
Even with eight grub pins, we had a hard time getting some grip on the small platform
Credit: joshua hutchens

Ease of Entry


The platform is a large enough target for your shoe but small enough that either the front or rear grub pins get lost in your cleat recess. This results in only a couple of the pins making contact with the shoe at any given time. Clipping into the Double Shot was straight forward most of the time, but we had a couple of incidences of slipping off the clipless side. Amongst the pedals we tested, the Double Shot 3 received the lowest score.

Ease of Exit


The Double Shot 3 pedals gave us mixed results in the exit tests, most of the time they were quite easy to disengage but when mud, sand, grit or debris was present on the pedal we had less consistency. The quarter egg beater mechanism doesn't hesitate to release your shoe, but its proximity to the pedal body meant that foreign objects that come to rest between the clipless mechanism and the black wing could seriously impede your release. For this reason, the pedal ranked lowest on our ease of exit metric.


Adjustability


The lightweight brass Crankbrothers cleats can be configured two different ways allowing for release angles of 15 or 20 degrees. The grub pins that are exclusive to this version of the Double Shot pedal are adjustable in height, but this is where the adjustability ends. The Xpedo Ambix, in contrast, offers the same amount of adjustable grub pins, albeit with better spacing and adjustable release tension.

Weight


At 404g per pair, the Double Shot 3 pedals paired with the 33-gram Crankbrothers brass cleats weigh in a single gram heavier than the more capable Xpedo Ambix which weighs 384 grams but has 52-gram cleats.

Platform


The mildly textured A380 aluminum body has a rough feel that would seem to indicate it offers traction. The eight grub pins on the concave body would also seem to indicate a solid connection with rubber soled shoes, but unfortunately, we found it lacking in stability and grip. The platform size we found just a touch too small rendering half of the grub pins useless as they fail to make contact with the rubberized sole of the shoe. Using a 5.10 flat soled shoe, we were able to get a great connection with the platform, but these shoes are built for clipless shoes, and the cleat recess in all of our test shoes is just longer than the pedal itself.

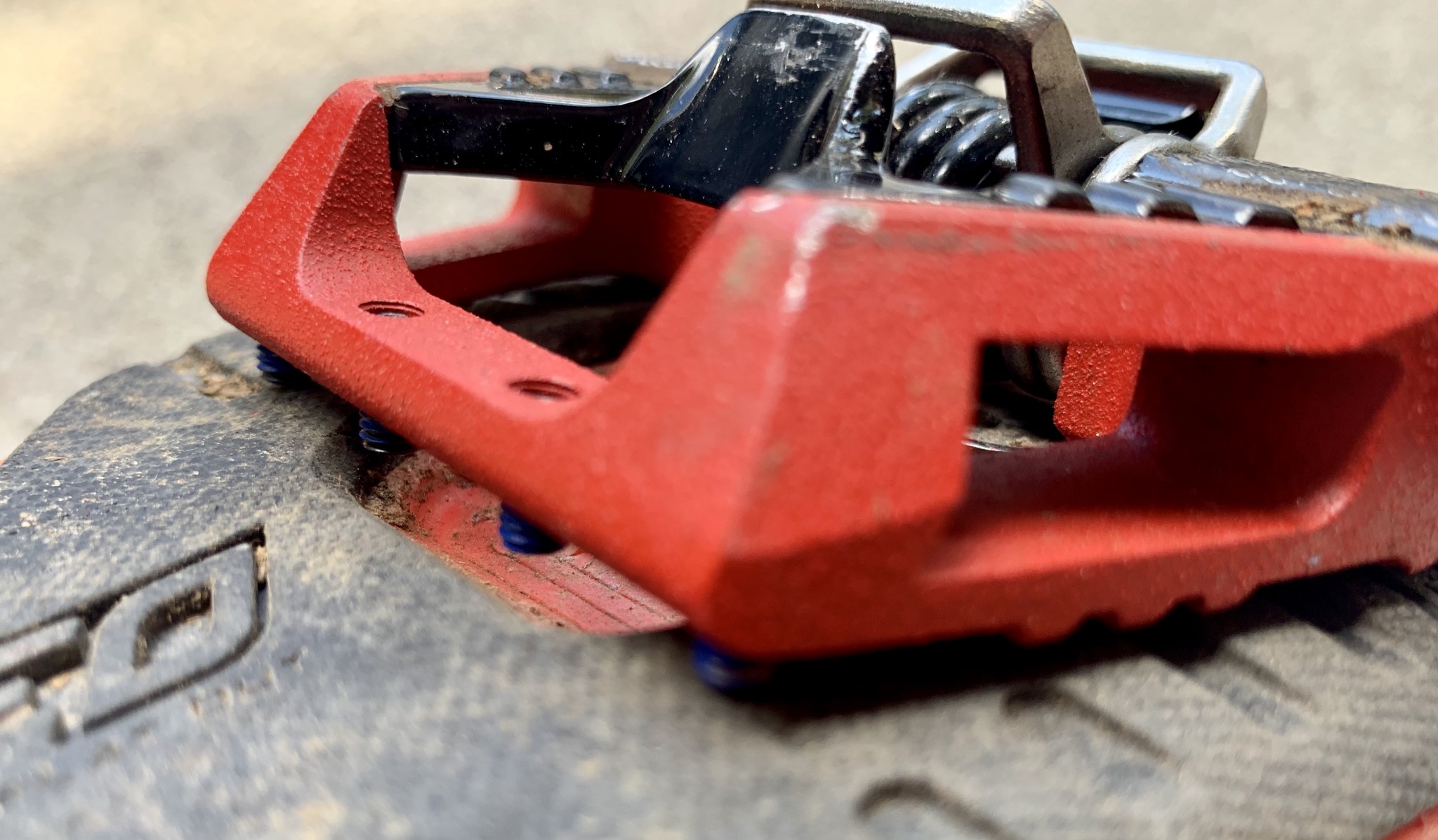

crankbrothers double shot 3 - the double shot 3's length doesn't quite span the distance to give...
the Double Shot 3's length doesn't quite span the distance to give it traction
Credit: joshua hutchens

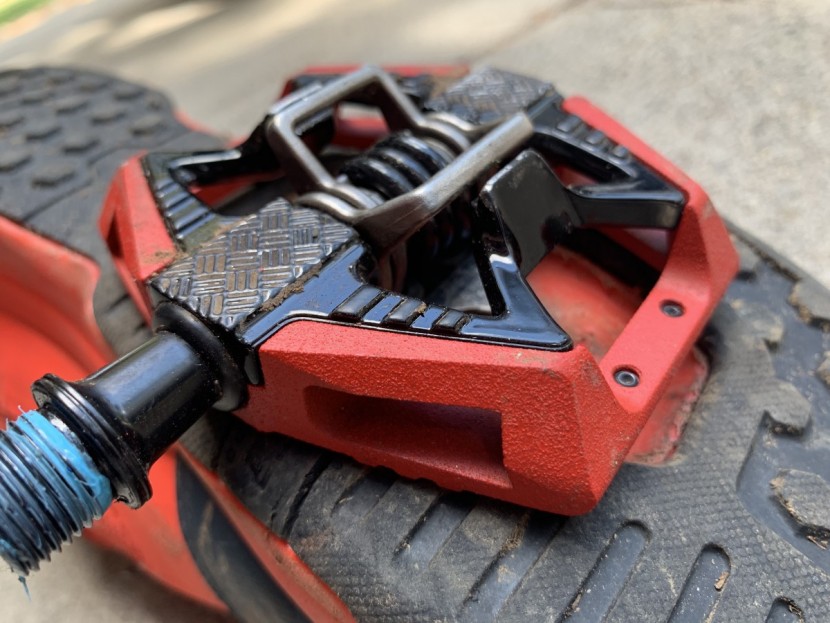

crankbrothers double shot 3 - at 94mm, these grub pins end up being largely useless
At 94mm, these grub pins end up being largely useless
Credit: joshua hutchens

Using a hard-soled XC shoe complicates the already poor traction and is thus not recommended.

Mud Shedding Ability


In the world of clipless pedals, it is accepted as fact that the Crank Brother's egg beater design performs exceptionally well in mud. It's a wide-open design that leaves ample space for mud to evacuate.

On the Double Shot 3's clipless side, the egg-beater design was modified to work on just one side of the pedal. With this design, it's held in place by a black wing-shaped insert. To clip in you just need to push your foot down on the egg-beater mechanism. The wings spread, and the cleat engages. If there is any mud in the cleat or the mechanism, it's easily pushed out of the interface through all of the open space. Debris can easily become lodged, however, between the X-shaped insert and the engagement wing. This phenomenon fouled our test pedals on multiple occasions resulting in drastically different release characteristics.

As with the Double Shot 2 the platform insert is a choking point. By messing with their proven egg-beater design to make it one-sided they have reduced its effectiveness at shedding mud.

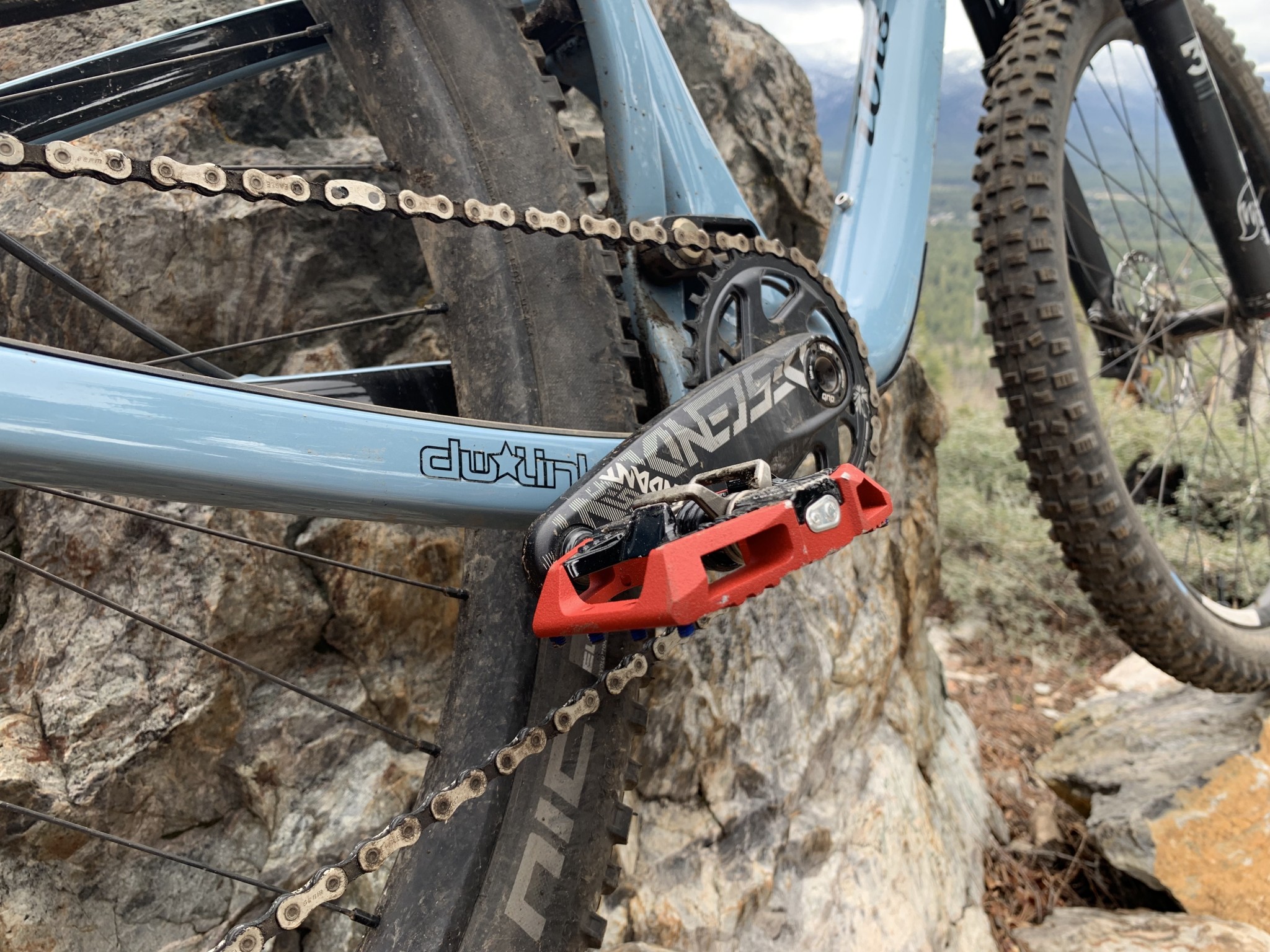

crankbrothers double shot 3 - one-sided clipless entry and a small slippery platform, can't see...
One-sided clipless entry and a small slippery platform, can't see that we like much about the Doubleshot
Credit: joshua hutchens

Value


The Double Shot 3 is the top dog option in the Double Shot line up, and while not incredibly expensive, we'd recommend the less expensive Xpedo Ambix over this pedal to anyone seriously considering a two-sided pedal.

Conclusion


We think there is great potential in the market for pedals that can pull double duty as flats or clip-ins. Unfortunately, the Double Shot 3 misses the mark in several ways. It gets the job done, but we recommend other models before these.

Joshua Hutchens
