Shimano XTR M9100 Race Review

A highly evolved, race proven pedal that provides exceptional stability for its size
gearlab tested logo
Shimano XTR M9100 Race Review
Credit: Competitive Cyclist
Price:  $180 List
  • 1
  • 2
  • 3
  • 4
  • 5
Manufacturer:   Shimano
By Joshua Hutchens ⋅ Senior Review Editor  ⋅  Jun 10, 2019
82
OVERALL
SCORE


RANKED
#2 of 21
  • Ease of Exit - 25% 9.0
  • Ease of Entry - 20% 8.0
  • Adjustability - 20% 8.0
  • Weight - 15% 9.0
  • Platform - 10% 5.0
  • Mud Shedding Ability - 10% 9.0

Our Verdict

The XTR M9100 race pedals are the result of continual evolution and technological advancements. They're consistent, reliable, and more stable than their predecessors. The cylindrical contact area provides a fair bit of stability while still prioritizing mud shedding. They feature widely spaced bearings and are available in two different axle lengths. We don't find them to be quite as user-friendly as the small platform offerings but these are light, small, and race ready. These will likely be well received amongst XC, CX and gravel riders; lets hope they hold up.
REASONS TO BUY
Lightweight
Low profile
Available in 2 different axle lengths
REASONS TO AVOID
Narrow platform
Expensive
Not recommended for trail or all-mountain riding

Compare to Similar Products


Awards  Editors' Choice Award
Best Overall Mountain Bike Pedal
Top Pick Award
Another Great Trail Riding Pedal
Best Buy Award
Best Bang for the Buck
Top Pick Award
Best for Enduro and Downhill Riding
Price $114.83 at Amazon
Compare at 2 sellers
Check Price at Backcountry
Compare at 3 sellers
$105.57 at Amazon
Compare at 3 sellers
$53.50 at Amazon
Compare at 3 sellers
Check Price at REI
Compare at 2 sellers
Overall Score Sort Icon
82
87
81
75
75
Star Rating
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
Bottom Line The top dog race pedal from Shimano that can punch above its classStable platform, highly adjustable and available in a multitude of colorsShimano's latest enduro approved pedal grows up a bit and the refreshes are mostly welcomeA solid choice for those wanting next generation stability at an entry-level price pointSolid, stable and heavy, we found the control they offer top-notch
Rating Categories Shimano XTR M9100 Race HT Components T2 Shimano PD-M8120 XT... Shimano ME700 Shimano Saint SPD M820
Ease of Exit (25%)
9.0
8.0
8.0
8.0
8.0
Ease of Entry (20%)
8.0
9.0
9.0
8.0
8.0
Adjustability (20%)
8.0
10.0
8.0
8.0
8.0
Weight (15%)
9.0
8.0
7.0
5.0
3.0
Platform (10%)
5.0
8.0
8.0
8.0
10.0
Mud Shedding Ability (10%)
9.0
9.0
8.0
7.0
8.0
Specs Shimano XTR M9100 Race HT Components T2 Shimano PD-M8120 XT... Shimano ME700 Shimano Saint SPD M820
Weight per Pair (grams) 314g 380g 430g 482g 550g
Weight of Cleats and Bolts (grams) 51g 62g 51g 50g 50g
Cleat Type SPD mountain HT X1 cleats SPD mountain SPD mountain SPD mountain
Style no cage mini-cage mini-cage mini-cage mini-cage
Platform Dimensions (lxw) 71 x 68 mm 83.5 x 68mm 100 x 71mm 100 x 74mm 100 x 79mm
profile height 17mm 17mm 18mm 19mm 19mm
Q-Factor 56mm 56mm 55mm 55mm 57mm
Total Width from Crank Arm 84mm 90mm 92mm 93mm 95mm
Entry 2-sided 2-sided 2-sided 2-sided 2-sided
Adjustable Tension yes yes yes yes yes
Traction Pins 0 4/side 0 0 4/side
Bearings dual angular contact, metal retainer Stainless Steel sealed cartridge bearings dual angular contact, metal retainer dual angular contact, plastic retainer dual angular contact, metal retainer
Cage Material annodized aluminum extruded/CNC machined aluminum anodized and machined aluminum painted aluminum forged and machined aluminum
Pedal Wrench Type 8mm allen 8mm allen 8mm allen 6mm allen or 15mm open end 8mm allen

Our Analysis and Test Results

The Shimano XTR M9100 Race pedal is a no-frills and no-compromise piece of equipment. Its forged-aluminum body has been heavily sculpted, leaving little room for mud to accumulate. The body now features a wider edge to edge contact area that is slightly ovalized to help mud shed between the shoe-pedal interface. The new body also extends further inboard to offer more support to the axle and contact with the shoe. The clipless mechanism and hexalobular fasteners remain unchanged from the Shimano XTR PD-M9000. The highly polished Chromoly steel axles are now available in two lengths 52mm and 55mm, the former helping to pull the Q-factor a bit tighter for CX, XC and gravel riders. Long careers in the bicycle industry haven't diminished our desire to open up boxes of fancy parts and play with them; new XTR pedals are no exception. We were surprised to discover that the bearings in these pedals didn't feel particularly smooth, not Shimano smooth and certainly not “assembled in Japan, XTR smooth.

Performance Comparison

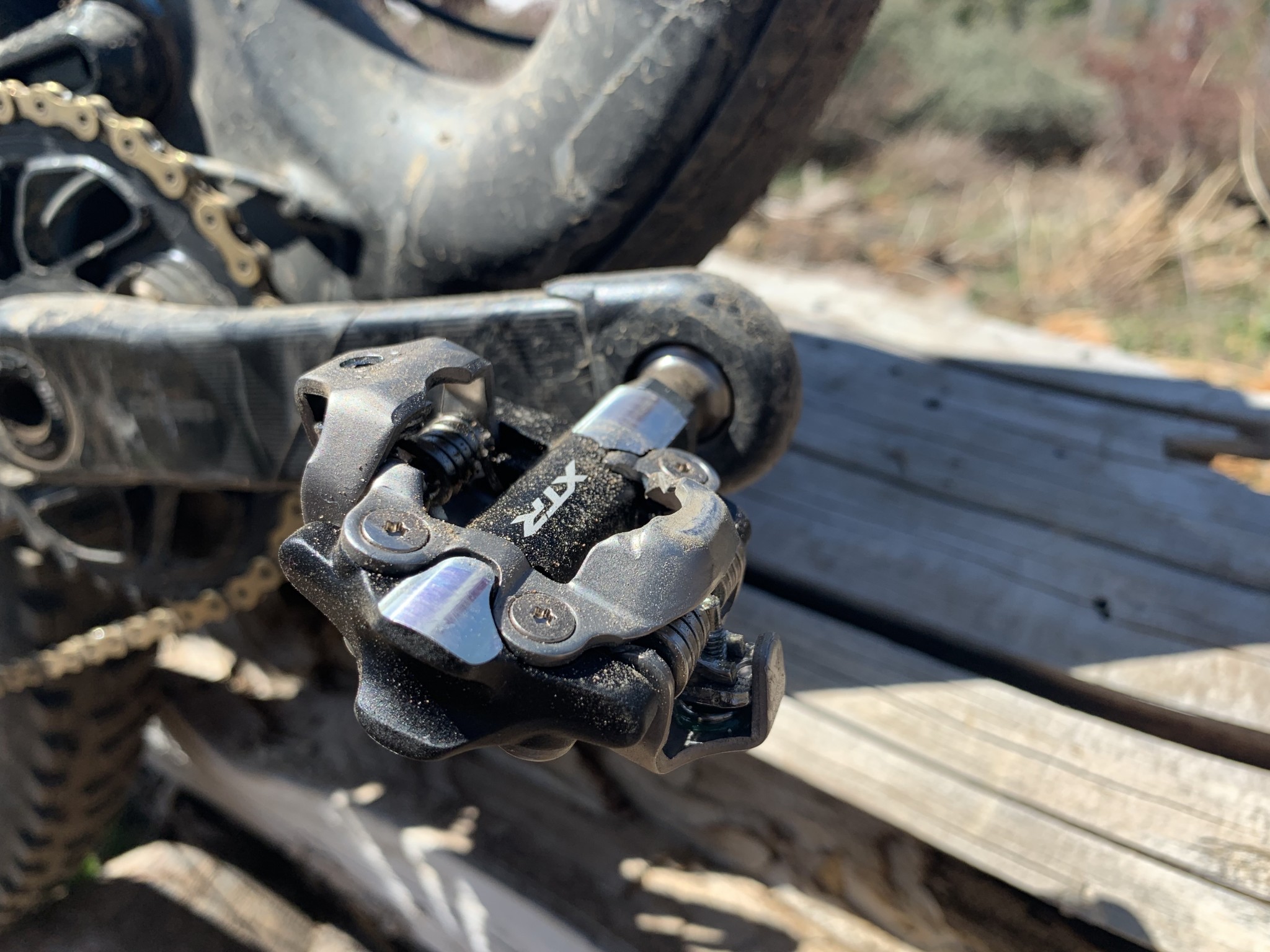

shimano xtr m9100 race - more substantial feeling than its predecessors, the xtr race pedal...
more substantial feeling than its predecessors, the XTR race pedal grows up.
Credit: joshua hutchens

Ease of Entry


The M9100 is simple to use. The pedals slick coating enables the cleat to slide right into and click into the engagement mechanism with minimal effort or force. It's smooth and significantly wider from edge to edge. At 17mm, the profile is as thin as the HT T-2, which helps maintain your center of gravity as low as possible.

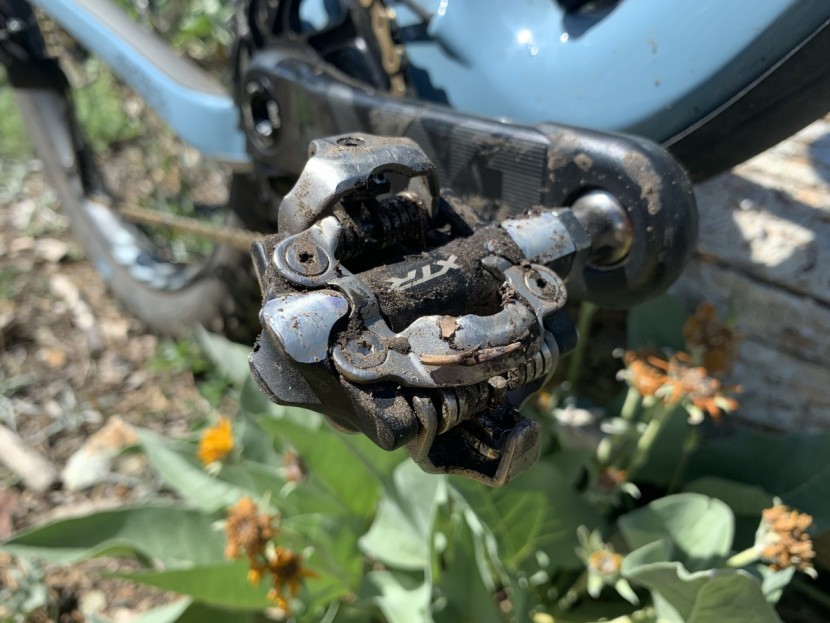

shimano xtr m9100 race - clean or dirty, the xtr race pedal is quick and easy to get out of
Clean or dirty, the XTR race pedal is quick and easy to get out of
Credit: joshua hutchens

Ease of Exit


Disengaging from the M9100 is almost telepathically quick with no hang-ups in the very smooth motion. You don't need to think twice or second guess it, the audible click lets you know when you've released. The cleat's float is slippery throughout its range, and release happens quickly and consistently. In contrast, the Look X-Track En-Rage Plus required considerably more force to reach disengagement.

Adjustability


Release tension varies from light to firm, and adjustments are made with a 3mm Allen key. The included cleats are the standard Shimano SH-51 cleats that allow for release inward or outward after 4 degrees of float. Optionally you can use the SH-56 multi-release cleats that allow for release inward, outward or in upward angles. Installation happens exclusively with an 8mm Allen as there are no wrench flats on the outside of the axle.

Weight


At 314 grams they're heavier than previous iterations of the XTR race pedal but still exceptionally lightweight. Notably, they're exactly the weight that Shimano says they are which we find refreshing. Still, for the racers and gram geeks, lighter pedals exist, such as the previously reviewed Crankbrothers Eggbeater 3 at 280 grams or the Time ATAC XS at 293 grams.

Platform


The platform is where the big strides have been made on this pedal, and it feels worth the weight. The machined surfaces that interface with the shoe have been stretched side to side to provide more contact laterally. That same surface has also been machined conically to decrease the chance of mud fouling your entry. Power transfer has been greatly improved from the XTR M9000 with every one of our test shoes.

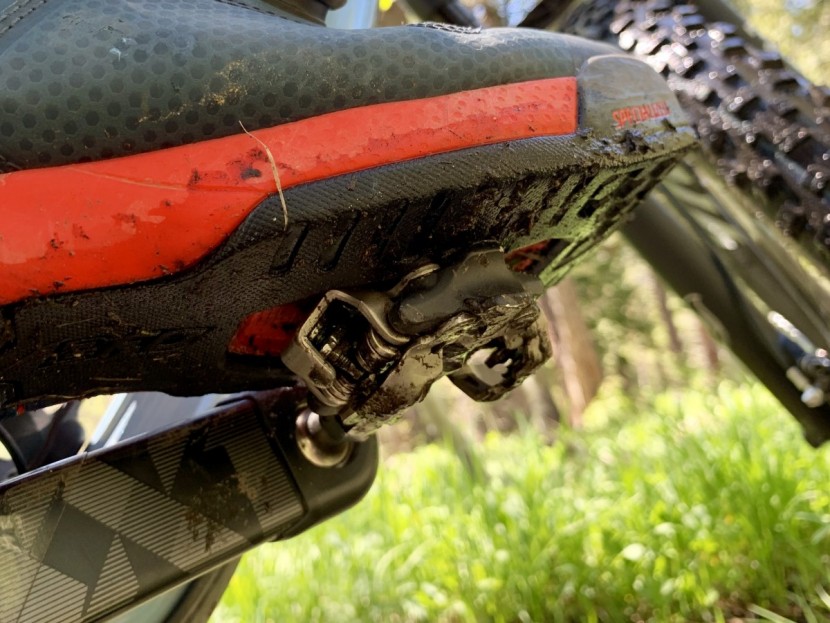

shimano xtr m9100 race - significantly more contact with the sole of the shoe results in...
Significantly more contact with the sole of the shoe results in increased stability
Credit: joshua hutchens

Mud Shedding Ability


The XTR race pedals hold onto much of their mud-shedding technology from the previous generation but add this cylindrical machining to the contact area. They've essentially machined a slight convex curve to the area that interfaces with the shoe allowing mud or debris to squeeze off of the pedal platform during the engagement. It works well with a larger number of shoes and seems to address a mud-shedding issue that didn't have to do with the clipless mechanism itself.

=

Value


At their suggested retail price, the M9100 pedals are definitely a little expensive. We feel they represent the best value to the gram counting racer who values weight savings and the consistent and reliable performance that Shimano SPD pedals are known for.

Conclusion


Care for a lightweight pedal but hoping for something a bit more stable and durable? Stable they are, durable they may be. Three of our four test pedals had seals pop out on the second ride, and the bearing feel never improved. We'd love to endorse them, but there's some kind of unresolved quality issue with these pedals.

Joshua Hutchens
