Xpedo Ambix Review

Great dual purpose pedal, offers good performance on either side and great value
gearlab tested logo

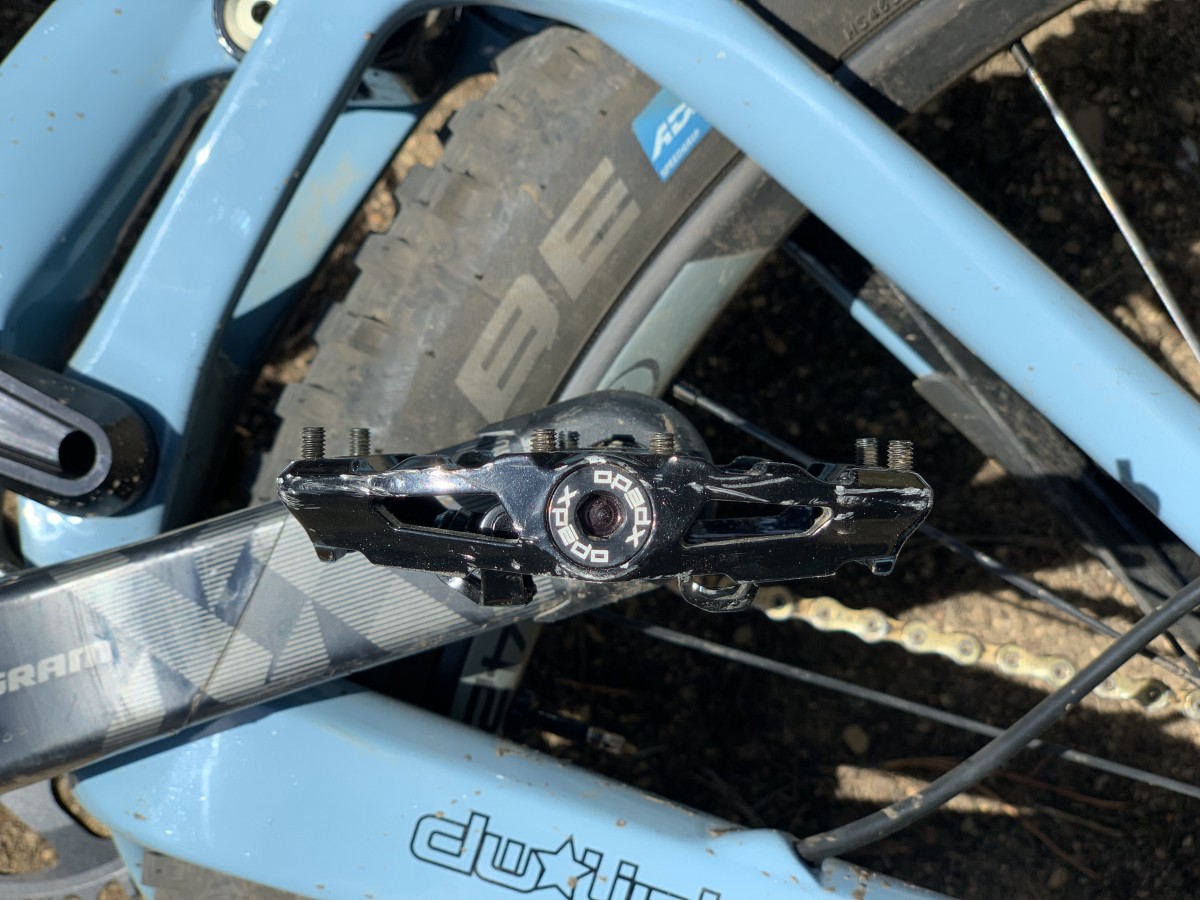

Xpedo Ambix Review (the center pins in the Ambix connect well in the midfoot and the length of the pedal helps it span the clipless recess...)
the center pins in the Ambix connect well in the midfoot and the length of the pedal helps it span the clipless recess in most shoes
Credit: joshua hutchens
Price:  $105 List
  • 1
  • 2
  • 3
  • 4
  • 5
Manufacturer:   Expedo
By Joshua Hutchens ⋅ Senior Review Editor  ⋅  Jun 10, 2019
69
OVERALL
SCORE


RANKED
#13 of 21
  • Ease of Exit - 25% 7.0
  • Ease of Entry - 20% 6.0
  • Adjustability - 20% 7.0
  • Weight - 15% 8.0
  • Platform - 10% 6.0
  • Mud Shedding Ability - 10% 7.0

Our Verdict

The Xpedo Ambix offers dual-purpose functionality in a value-oriented package. A flat pedal on one side and a clipless pedal on the other, this model has you covered if you want to switch it up. We found the flat side of the pedal to be functional, well-designed, and effective with its widely spaced grub pins. The clipless side engaged well, shed mud, and performed predictably. The pedal is lightweight, does what it sets out to do and offers great value. It bests its closest competitor in every metric of our test, and while it has a wee bit of room for improvement, it should satisfy even aggressive riders looking for a dual duty platform. To see how it stacks up versus the competition, check out our review of the best mountain bike pedals.
REASONS TO BUY
Functions as a clipless pedal and a flat pedal
Good traction on the flat side
Adjustable release tension
Great value
REASONS TO AVOID
Not as much platform support as we prefer on the clipless side

Compare to Similar Products


xpedo ambix
This Product
Xpedo Ambix
Awards Top Pick Award
Best Dual-Function Clipless and Flat Pedal
Top Pick Award
Another Great Trail Riding Pedal
Best Buy Award
Best Bang for the Buck

Price $105 List
$94.04 at Amazon
$102.00 at Amazon
Compare at 3 sellers
$53.30 at Amazon
Compare at 3 sellers
$130 List
$137.00 at Amazon
$48.99 at Amazon
Compare at 2 sellers
Overall Score Sort Icon
69
81
75
71
68
Star Rating
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
  • 1
  • 2
  • 3
  • 4
  • 5
Bottom Line Impresses on the flat side and gets the job done on the clipless sideShimano's latest enduro approved pedal grows up a bit and the refreshes are mostly welcomeA solid choice for those wanting next generation stability at an entry-level price pointGreat feeling pedal but its mud performance and heft will probably keep it off of our crank armsIf you want to travel light on a budget, this is your pick
Rating Categories Xpedo Ambix Shimano PD-M8120 XT... Shimano ME700 Look Cycle X-Track... Shimano M520
Ease of Exit (25%)
7.0
8.0
8.0
8.0
5.0
Ease of Entry (20%)
6.0
9.0
8.0
7.0
9.0
Adjustability (20%)
7.0
8.0
8.0
8.0
8.0
Weight (15%)
8.0
7.0
5.0
5.0
8.0
Platform (10%)
6.0
8.0
8.0
7.0
3.0
Mud Shedding Ability (10%)
7.0
8.0
7.0
6.0
6.0
Specs Xpedo Ambix Shimano PD-M8120 XT... Shimano ME700 Look Cycle X-Track... Shimano M520
Weight per Pair (grams) 384g 430g 482g 449g 374g
Weight of Cleats and Bolts (grams) 52g 51g 50g 55g 50g
Cleat Type XPEDO XPC SPD mountain SPD mountain SPD mountain SPD Mountain
Style clip/flat mini-cage mini-cage mini-cage no cage
Platform Dimensions (lxw) 102 x 84mm 100 x 71mm 100 x 74mm 93 x 67mm 42 x 61mm
profile height 19mm 18mm 19mm 21mm 22mm
Q-Factor 56 mm 55mm 55mm 55mm 55 mm
Total Width from Crank Arm 100mm 92mm 93mm 89mm 80mm
Entry 1-sided 2-sided 2-sided 2-sided 2-sided
Adjustable Tension yes yes yes yes yes
Traction Pins 8/side 0 0 4/side 0
Bearings 3 Sealed Cartridge dual angular contact, metal retainer dual angular contact, plastic retainer not listed Dual Angular Contact
Cage Material Aluminum anodized and machined aluminum painted aluminum Forged aluminum n/a
Pedal Wrench Type 8mm allen 8mm allen 6mm allen or 15mm open end 8mm allen 8mm allen

Our Analysis and Test Results

Xpedo's Ambix dual-function pedal offers a reliable option for riders wanting clipless functionality and flat pedal freedom. The pedal body is machined from 6061 aluminum, and the Cromoly axles roll on three sealed cartridge bearings. The flat side of the pedal features eight adjustable grub pins with four located in the center around the spindle body and one in each corner of the pedal. The clipless side features an SPD-style engagement mechanism with a static front bar and spring-loaded rear. The release tension is adjustable, and the included XPC cleats offer 6 degrees of float. The pedal's platform size and pin placement interface well with a clipless shoe and aren't overly obtrusive when riding the clipless side.

These dual-duty pedals showing up on the market aren't for riding your enduro bike to the store in flip-flops. They satisfy a demand for a pedal that allows you to choose which style of pedal you want to ride without the need to switch pedals. This can give the clipless rider a chance to step back from commitment in precarious situations or add some efficiency to a flat pedal riders haul up the hill.

Performance Comparison


Scoring well in most categories, the Ambix handily bested the similarly purposed Crankbrothers Double Shot 3. Seeing how the Xpedo Ambix stacked up against the competition, it is clear to see why it was our Top Pick for versatility.

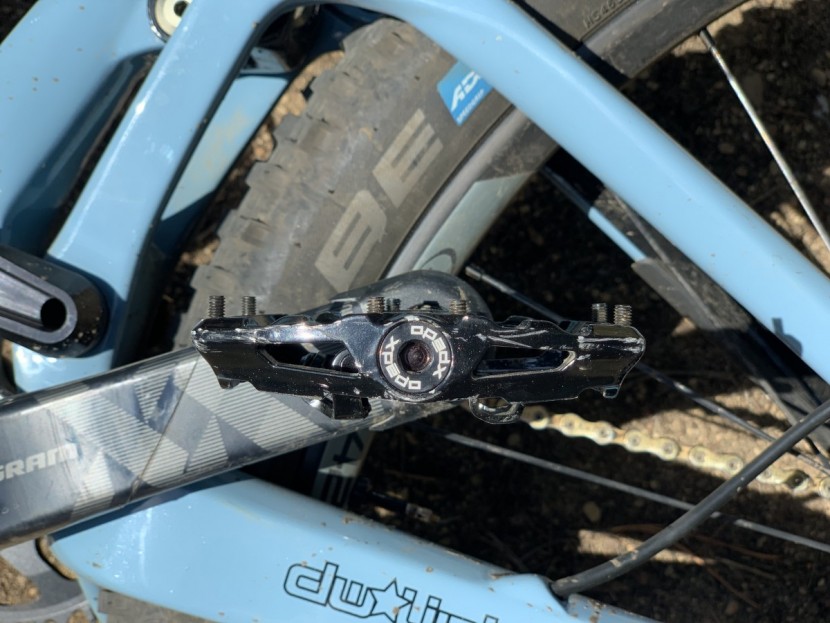

xpedo ambix - the center pins in the ambix connect well in the midfoot and the...
the center pins in the Ambix connect well in the midfoot and the length of the pedal helps it span the clipless recess in most shoes
Credit: joshua hutchens

Ease of Entry


The platform on the Ambix hits a sweet spot for size, its large enough to straddle the opening on a clipless shoe and small enough that it didn't feel bulky. We were able to clip into the Ambix with ease, the entry felt a little more vertical than the kick in motion on many SPD pedals but didn't complicate engagement. Once broken in the pedal hangs in a clipless biased fashion but not quite straight up and down, when your foot hits it from behind you'll naturally engage the clipless side of the pedal. Stepping into the flat side required a little bit of finesse or rearward motion, but neither side felt seamless. For this reason, the Ambix didn't score as high as our dual-sided clipless pedals such as the Time Speciale 8. Once oriented, the Ambix connected readily, and we weren't confronted with any engagement issues like we were on the Crankbrothers Double Shot 3

Ease of Exit


The Xpedo Ambix pedals are far more competitive in this metric. The clipless mechanism doesn't hesitate to release, and the otherwise flat clipless side of the pedal is free of obstruction. Getting out of the pedal is a typical heel twist away. Riding the platform side of the pedal feels similar to riding a dedicated flat and getting yourself untangled is as simple as lifting up. The grub pin traction means you won't likely be slipping off of this pedal.


This Crank Brother Double Shot 3, in contrast, had an inconsistent release that left us feeling uncertain on the clipless side. The flat side didn't fare any better with our shoes occasionally sliding off the Double shot but seated firmly on the Ambix.

Adjustability


Adjustable grub pins provide customization to the flat side of this pedal and unlike the Crankbrothers Double Shot 3, the pins were placed such that they made contact with the sole of the shoe that surrounds the cleat recess. The Xpedo also offers adjustable release tension which isn't an option on the Crankbrothers pedals. The release tension range was very similar to a Shimano SPD pedal such as the XTR M-9120.

Weight


At 384g per pair, the Ambix pedals are respectably lightweight. They're lighter than any of the other dual duty pedals we've tested including the previously tested HT D-1. While weight isn't everything in this segment, the fact that they provide two different surfaces for fewer grams than most single-purpose pedals we found impressive. Lighter than the Shimano XTR M9120 makes us feel good about adding versatility without a weight penalty.

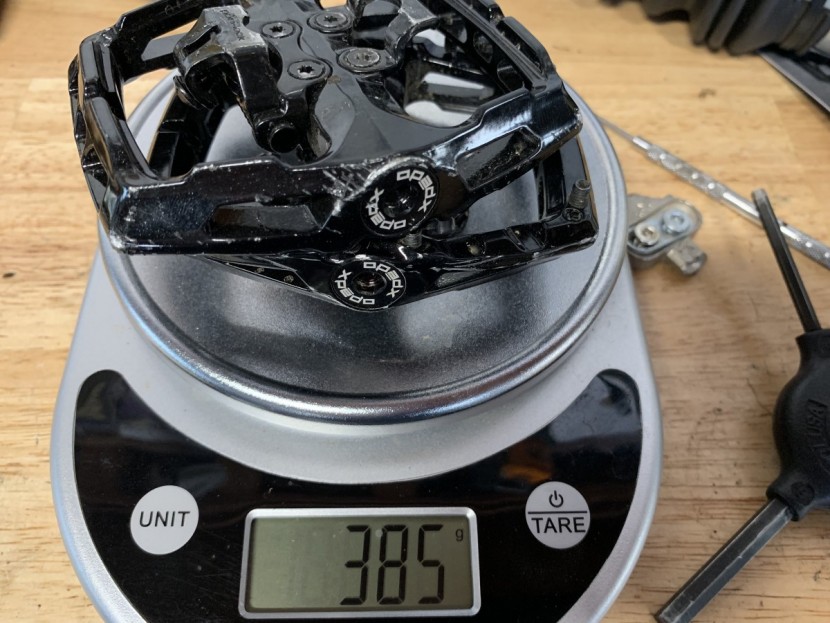

xpedo ambix - the xpedo weighed in at 384 grams before testing, looks like we've...
The Xpedo weighed in at 384 grams before testing, looks like we've picked up a gram of dirt here..
Credit: joshua hutchens

Platform


The low profile 6061 aluminum body is lengthy and wide, providing ample support to enduro and trail style shoes. The flat platform features eight grub pins that most notably engage the forefoot, most of the time we got a solid bite from the pedal and felt in control. If you step too far outward and miss the inboard central pins, the outboard pins get lost in the cleat recess of the shoe while the fore and aft pins connect but leave you feeling less secure.

We tested these pedals using Vibram, 2FO, Shimano AM, 5.10, and harder XC soles. On all but the XC soles, we found a solid connection that felt like what we've come to expect from the nicer flat pedals on the market such as the VP Components VP-Vice. Moisture didn't affect our connection much as it relied on grub pin interface more than friction.

On the clipless side, they engaged readily but lacked the supportive feel we'd hoped the larger pedal body would provide. Pedals like the Shimano XT M8120 or Saint M820 support the sole of the shoe along the spindle structure and we didn't feel much of that with the Ambix. Their clipless support felt a bit reminiscent of the Shimano M530, while not a bad pedal, the market is evolving to offer more support.

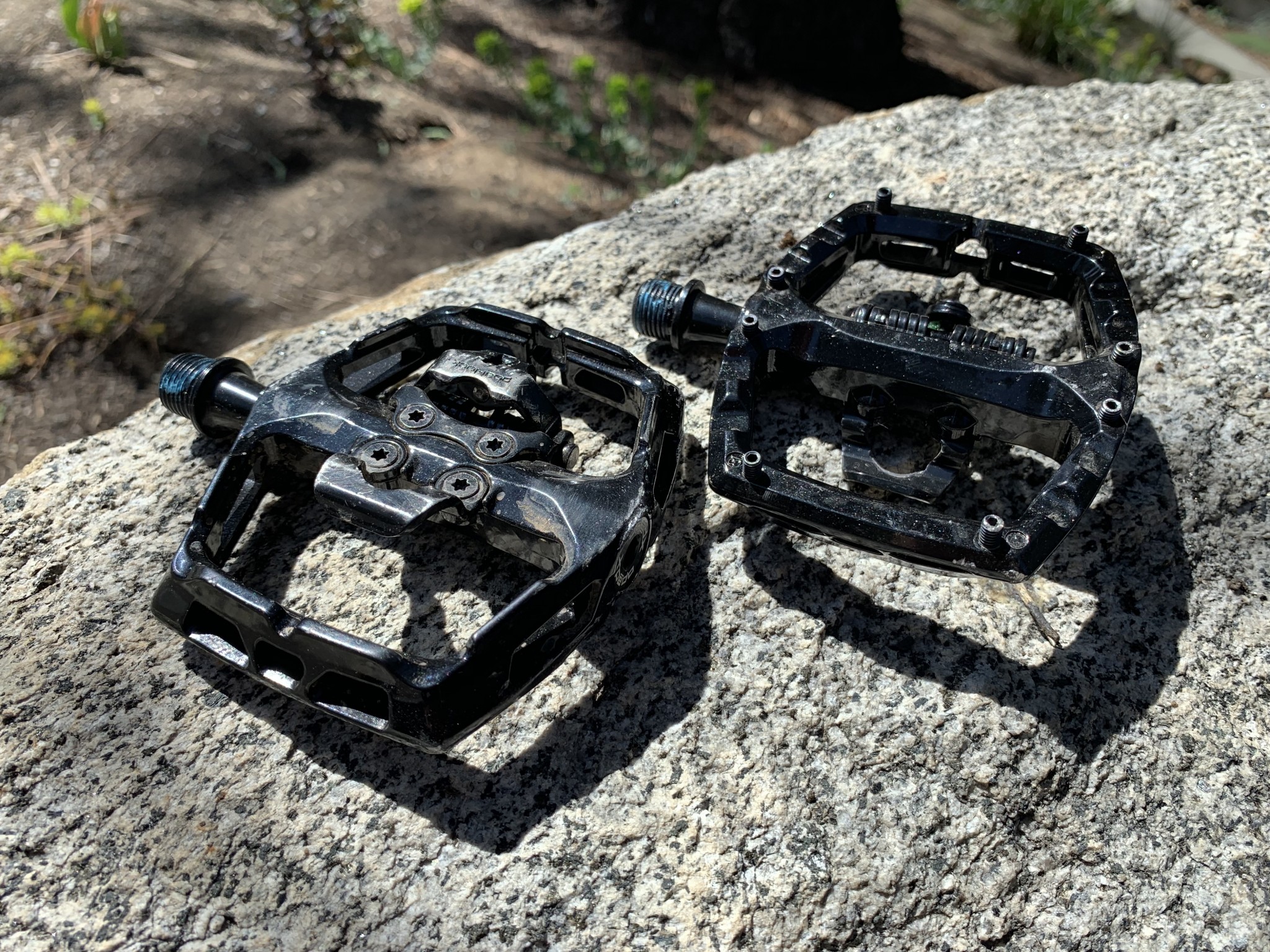

xpedo ambix - the ambix offers stability on one side and security on the other.
The Ambix offers stability on one side and security on the other.
Credit: joshua hutchens

Mud Shedding Ability


In general, less surface area means fewer places for mud to hang on and the Ambix features a minimalist clipless mechanism that helps its clipless side best the comparatively crowded Crankbrothers Double Shot 3. It can't quite match the mud-shedding performance of the Shimano XTR M-9120 but that pedal doesn't feature a platform on one side.

On the Ambix's flat side, Xpedo has machined the spindle housing in an angular fashion which allows mud stuck to the shoe to split and shed fore or aft of the spindle. Similar to the tactic employed by the Shimano XTR M9100 with its conical machining.

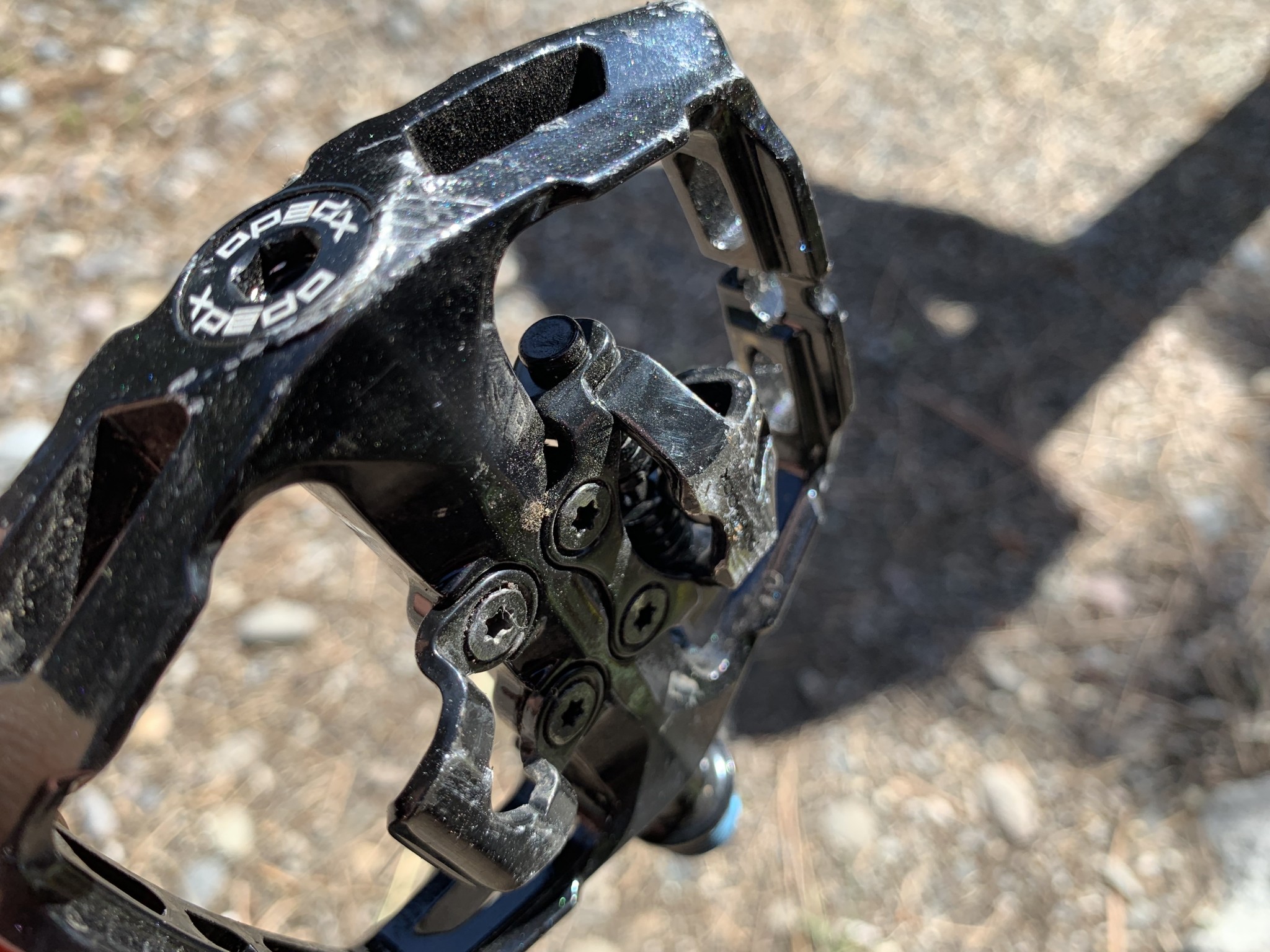

xpedo ambix - the minimal clipless mechanism does a respectable job of leaving the...
The minimal clipless mechanism does a respectable job of leaving the mud on the trail
Credit: joshua hutchens

Value


The Xpedo Ambix retails for what we feel is a reasonable price, and you can pay a little extra to get the in an anodized oil slick color. We find these to be an excellent value to the consumer. Less expensive than any of the other dual-function pedals we've tested, they excel in performance and value.

Conclusion


This is the best dual duty pedal we've tested. While we find some room for improvement in our metrics, the Ambix gives a substantial and stable platform and a predictable clipless experience.

Joshua Hutchens
